High Mounted STOPLAMP Connector End View (C475)

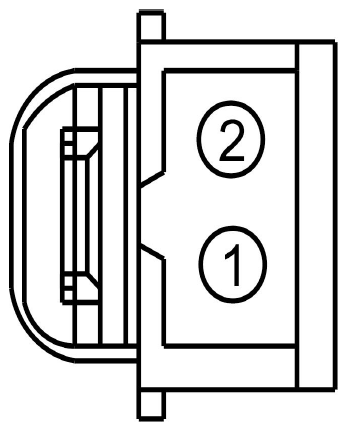

Fig 1: Identifying High Mounted Stoplamp Connector (C475)
G08742112Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 CLS17 (YE-GY) 20 CTRL MOD. - STOP HIGH MOUNT
2 GD150 (BK-WH) 20 GROUND - PILLAR D LEFT # 2ND POINT (6L2T)
