Exterior Rear View Mirror, Left Connector End View (C520)

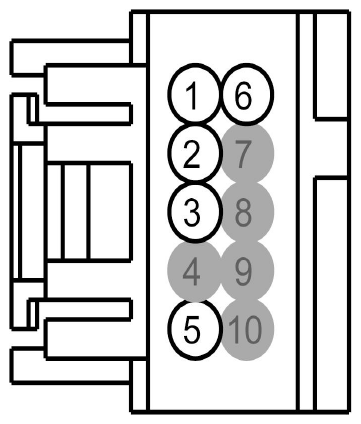

Fig 1: Identifying Exterior Rear View Mirror, Left Connector (C520)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPM16 (BN-BU)	20	CTRL MOD. - LEFT MIRROR LEFT
1	CPM28 (BU-BN)	22	CTRL MOD. - LEFT MIRROR LEFT	with door module
2	CPM24 (GY-YE)	20	CTRL MOD. - LEFT MIRROR COMMON GLASS ADJUSTMENT
2	CPM03 (BU-WH)	22	CTRL MOD. - LEFT MIRROR COMMON GLASS ADJUSTMENT	with door module
3	CPM17 (BU-GN)	20	CTRL MOD. - LEFT MIRROR UP
3	CPM29 (GN)	22	CTRL MOD. - LEFT MIRROR UP	with door module
4	*	*	Not Used
5	CRD13 (GN-VT)	22	CTRL MOD. - HEATER MIRROR LEFT	with door module
6	RPM05 (VT-GN)	22	CTRL MOD. - LEFT MIRROR RETURN	with door module
7	*	*	Not Used
8	*	*	Not Used
9	*	*	Not Used
10	*	*	Not Used

Available Pigtail Kits

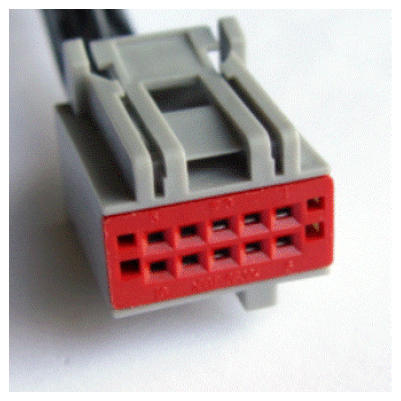

Pigtail Kit Part Number WPT-934	Service Part Number: 3U2Z-14S411-LSB  Gauge: 18  Pin material: Silver  Cavities: 10  Vehicle Uses Lamp - Headlamp Switch Module - Lighting Control Module - Reverse Park Aid (RPA) Module - Seat Memory Radio Switch - Headlamp Switch - Headlamp/Foglamp Switch - Multifunction Switch - Power Window - Driver Switch - Turn Signal

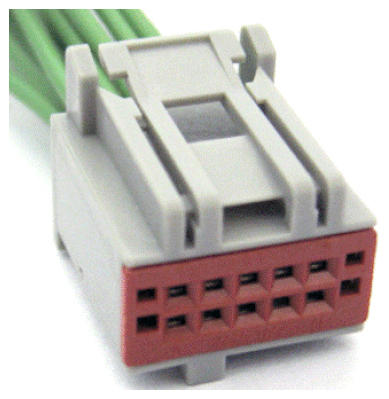

Pigtail Kit Part Number WPT-559	Service Part Number: 3U2Z-14S411-LSA  Gauge: 20  Pin material: Tin  Cavities: 9  Vehicle Uses Module - Reverse Park Aid (RPA) Module - Seat Memory Switch - Heated Seat - RH - Front Switch - Multifunction Switch - Power Window - Driver Switch - Seat (driver) Switch - Seat (passenger)
