Exterior Door Handle, Left Front Connector End View (C543)

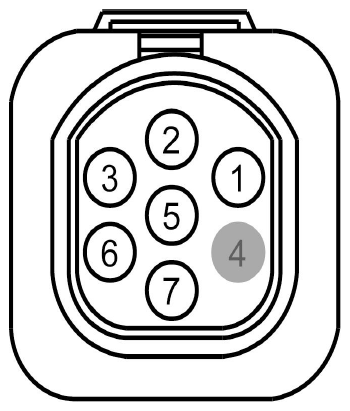

Fig 1: Identifying Exterior Door Handle, Left Front Connector (C543)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPK12 (YE)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE FRONT LEFT SIDE +
2	CPK12 (GN-BN)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE FRONT LEFT SIDE -
3	CPK15 (GN-WH)	22	SWITCH - LATCH CLUTCH LEFT FRONT
4	*	*	Not Used
5	CPK23 (YE-VT)	22	SWITCH - HANDLE UNLOCK LEFT FRONT
6	CPK19 (BU-GN)	22	SWITCH - LOCK LEFT FRONT
7	GD150 (BK-WH)	22	GROUND - PILLAR D LEFT # 2ND POINT (6L2T)
