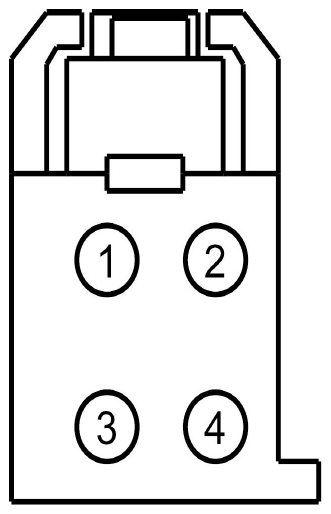

Driver Seat Rear Height Motor Connector End View (C363)

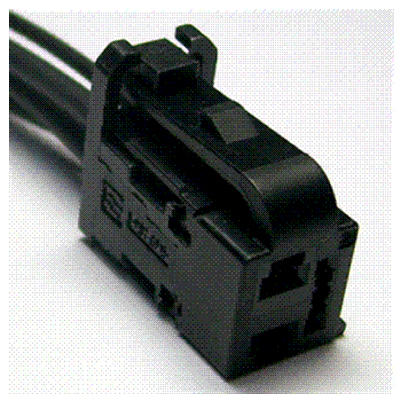

Fig 1: Identifying Driver Seat Rear Height Motor Connector (C363)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPS04 (YE-OG)	14	CTRL MOD. - DRIVER SEAT HEIGHT REAR/PARALLEL DOWN
1	CPS26 (YE-BU)	14	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN	w/o memory
2	VPS11 (GN-BN)	20	SENSOR - DRIVER SEAT HEIGHT REAR/PARALLEL
3	CPS05 (BU-WH)	14	CTRL MOD. - DRIVER SEAT HEIGHT REAR/PARALLEL UP
3	CPS27 (BU-BN)	14	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP	w/o memory
4	RPS13 (GN-OG)	20	CTRL MOD. - DRIVER SEAT SENSORS CUSHION -

Available Pigtail Kits
Pigtail Kit Part Number WPT-1311	Service Part Number: CU2Z-14S411-BAA  Gauge: 20  Pin material: Tin  Cavities: 4  Vehicle Uses Motor - Seat Height (Front) Motor - Seat Recline
