Door Latch, Left Front Connector End View (C525)

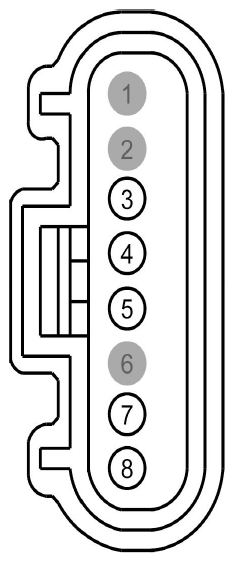

Fig 1: Identifying Door Latch, Left Front Connector (C525)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	CPL26 (GN-VT)	20	SWITCH - LATCH DRIVER # AJAR
4	CPL30 (BU-BN)	20	SWITCH - LATCH DRIVER # UNLOCK
5	RPL63 (WH)	20	CTRL MOD. - DOOR LOCK # LATCH DRIVER
5	GD134 (BK-VT)	22	CTRL MOD. - DOOR LOCK # LATCH DRIVER	w/o door module
6	*	*	Not Used
7	CPL02 (VT-GN)	20	CTRL MOD. - DOOR LOCK # DRIVER LOCK
7	CPL75 (BN-WH)	14	CTRL MOD. - DOOR LOCK # DRIVER LOCK	w/o door module
8	CPL51 (BU-GN)	20	CTRL MOD. - DOOR LOCK # DRIVER UNLOCK
8	CPL51 (BU-GN)	14	CTRL MOD. - DOOR LOCK # DRIVER UNLOCK
