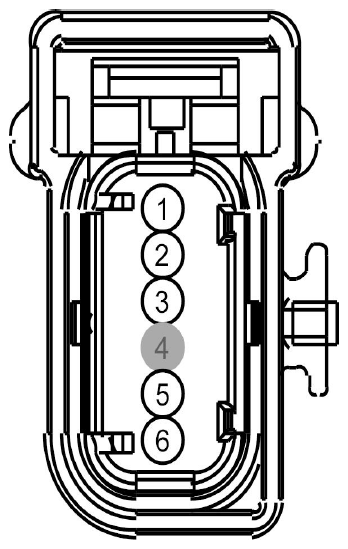

Safety Belt Tension Sensor (BTS), Left Front Connector End View (C3247)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VR210 (BU-BN) | 20 | SENSOR - SEAT BELT TENSION FRONT PASSENGER OUTBOARD | |
| 2 | LR142 (YE-BU) | 20 | CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD + | |
| 3 | GD901 (BK) | 20 | GROUND - PASSENGER SEAT # RESTRAINTS CLEAN | |
| 4 | * | * | Not Used | |
| 5 | CR201 (GN-BU) | 20 | SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT DRIVER SIDE | |
| 6 | GD901 (BK) | 20 | GROUND - PASSENGER SEAT # RESTRAINTS CLEAN |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1329 | Service Part Number: DU2Z-14S411-EA Gauge: 20 Pin material: Tin Cavities: 6 Vehicle Uses
|
