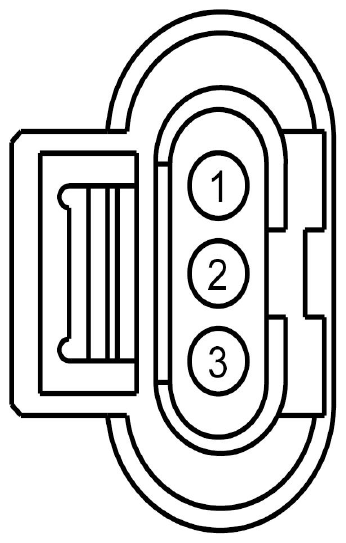

Parking Aid Sensor Rear, Outer Right Connector End View (C4011)

Fig 1: Identifying Parking Aid Sensor Rear, Outer Right Connector (C4011)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LMP07 (BU-WH)	20	CTRL MOD. - PARKING AID # SENSORS REAR
2	VMP17 (YE-OG)	20	SENSOR - PARKING AID # REAR # (RIGHT OUTER)
3	RMP07 (GN-WH)	20	CTRL MOD. - PARKING AID # SENSORS REAR

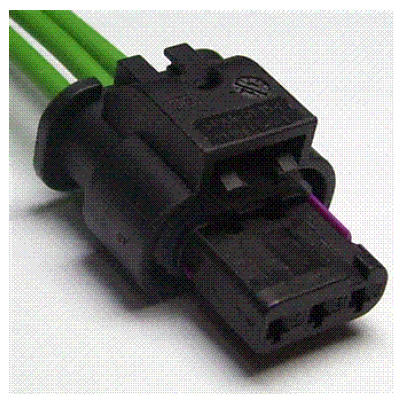

Available Pigtail Kits
Pigtail Kit Part Number WPT-1287	Service Part Number: CU2Z-14S411-YA  Gauge: 18  Pin material: Silver  Cavities: 3  Vehicle Uses Coil - Ignition Sensor - Front Park Aid (FPA) Sensor - Reverse Park Aide (RPA)
