FOOTWELL Lamp, Rear Connector End View (C3640)

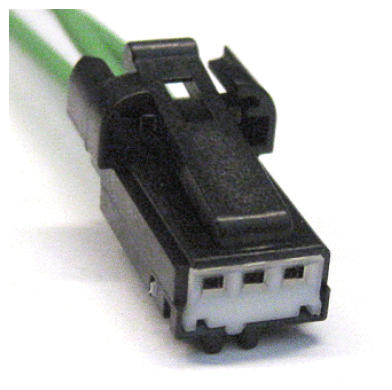

Fig 1: Identifying Footwell Lamp, Rear Connector (C3640)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	CBP17 (BN-GN)	20	FUSE OR CIRCUIT BREAKER
2	CLN38 (BU-WH)	20	CTRL MOD. - FOOTWELL (STEP IN) LAMP LEFT
3	RLF26 (BK)	22	SWITCH - HEADLAMP RETURN

Available Pigtail Kits
Pigtail Kit Part Number WPT-911	Service Part Number: 8U2Z-14S411-LA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Fuse Panel Junction Block Lamp - Ambient Lighting Lamp - Front Park Lamp - Map Lamp - Park/Turn Lamp - PRNDL Indicator Lamp - Roof Marker Module - Driver Door Sensor - Speed Switch - Ambient Lighting Dimmer
