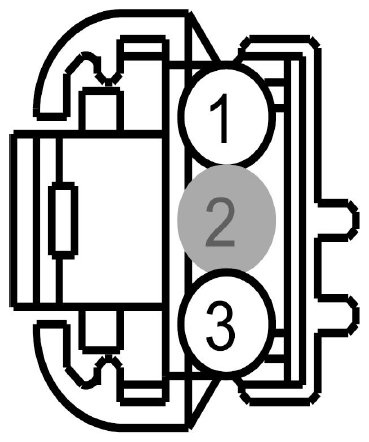

Cd Slot Illumination Connector End View (C2450)

Fig 1: Identifying Cd Slot Illumination Connector (C2450)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CCD15 (WH-OG)	20	CTRL MOD. - ILLUMINATION SWITCH CDC
2	*	*	Not Used
3	GD133 (BK)	20	GROUND - COWL SIDE/PILLAR A LEFT (6L2T)

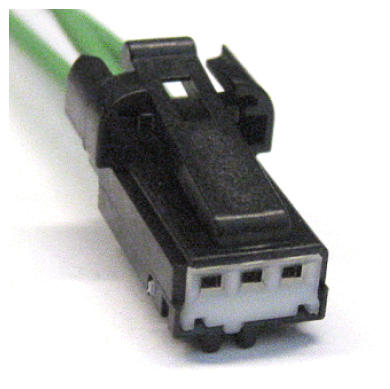

Available Pigtail Kits
Pigtail Kit Part Number WPT-911	Service Part Number: 8U2Z-14S411-LA  Gauge: 18  Pin material: Silver  Cavities: 3  Vehicle Uses Fuse Panel Junction Block Lamp - Ambient Lighting Lamp - Front Park Lamp - Map Lamp - Park/Turn Lamp - PRNDL Indicator Lamp - Roof Marker Module - Driver Door Sensor - Speed Switch - Ambient Lighting Dimmer
