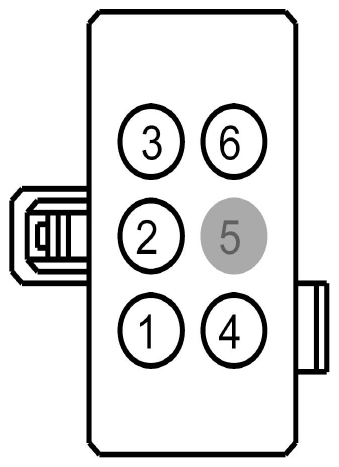

Temperature Blend Door Actuator, LH Side Connector End View (C2091)

Fig 1: Identifying Temperature Blend Door Actuator, LH Side Connector (C2091)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CH233 (VT-BN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 1/CLOSE (IF PLUS)	EMTC
1	CH238 (YE-OG)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 1/CLOSE (IF PLUS)	EATC
2	CH232 (WH-BN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COMMON	EMTC
2	CH237 (VT-GY)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COMMON	EATC
3	CH234 (YE-GN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 2/OPEN (IF PLUS)	EMTC
3	CH239 (BU-WH)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 2/OPEN (IF PLUS)	EATC
4	CH235 (BU)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 3	EMTC
4	CH240 (GN-WH)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 3	EATC
5	*	*	Not Used
6	CH236 (WH)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 4	EMTC
6	CH241 (GY-BN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 4	EATC

Available Pigtail Kits

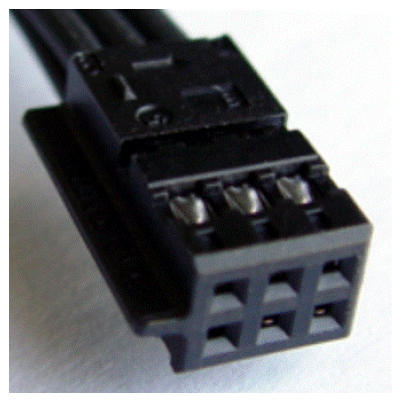

Pigtail Kit Part Number WPT-276	Service Part Number: 3U2Z-14S411-HDA  Gauge: 18  Pin material: Tin  Cavities: 6  Vehicle Uses Clock Switch - Deck Lid/Hatch Release Switch - Deck Lid/Lift Gate Ajar Switch - Message Center Switch - Moon Roof/Sun Roof

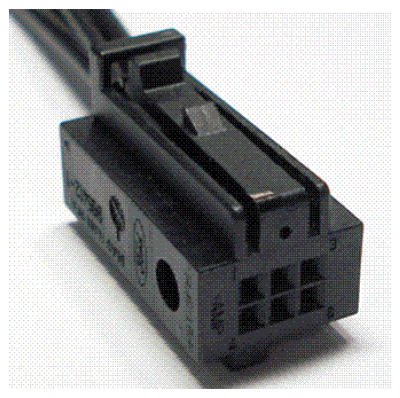

Pigtail Kit Part Number WPT-1060	Service Part Number: 3U2Z-14S411-HDB  Gauge: 18  Pin material: Tin (greased)  Cavities: 6  Vehicle Uses Clock Switch - Deck Lid/Hatch Release Switch - Message Center Switch - Moon Roof/Sun Roof
