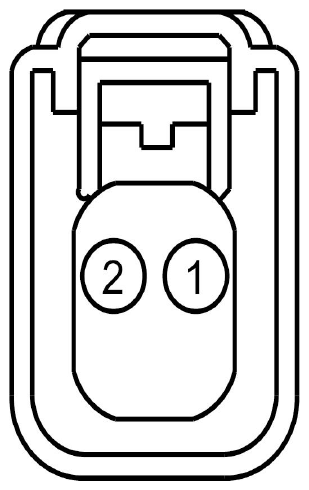

Speaker, Instrument Panel Connector End View (C2359)

Fig 1: Identifying Speaker, Instrument Panel Connector (C2359)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME06 (GN)	18	CTRL MOD. - AUDIO #SPEAKER CENTER FRONT IP +
2	RME06 (GY-YE)	18	CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP -

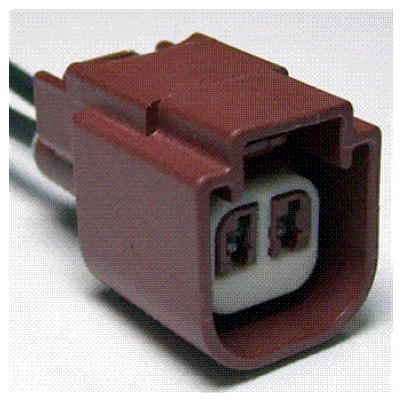

Available Pigtail Kits
Pigtail Kit Part Number WPT-1231	Service Part Number: 3U2Z-14S411-DVAB  Gauge: 14  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Heater - Fuel Sensor - Oil Temperature
