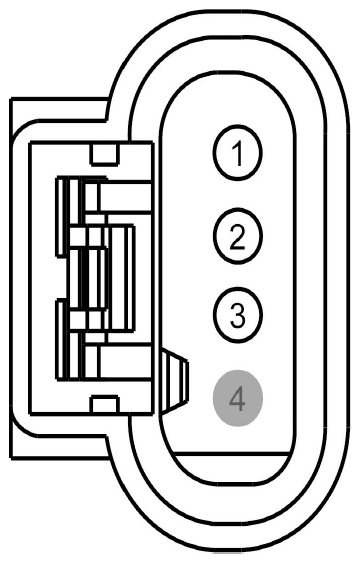

Grille Shutter Actuator Connector End View (C1651)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | RE146 (VT-OG) | 20 | CTRL MOD. - POWERTRAIN # EXHAUST GAS TEMPERATURE SENSOR BANK 1 PRE CAT - | |
| 2 | VDC46 (BU-BN) | 20 | CTRL MOD. - GENERATOR (ALTERNATOR) LIN BUS (NON-PCM CONTROLLED) | |
| 3 | CBB36 (BU-BN) | 20 | FUSE OR CIRCUIT BREAKER | |
| 4 | * | * | Not Used |
| Available Pigtail Kits | |
|---|---|

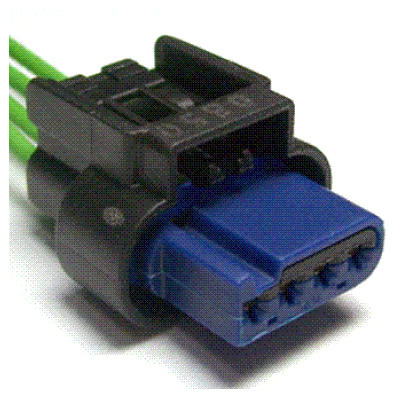

| Pigtail Kit Part Number WPT-1309 | Service Part Number: CU2Z-14S411-AYA Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses
|
