Coil On Plug (Cop) 2 Connector End View (C1539)

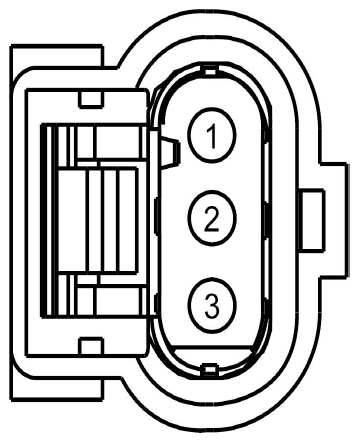

Fig 1: Identifying Coil On Plug (COP) 2 Connector (C1539)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	CE304 (YE-BU)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP2D)
2	GD108 (BK-VT)	16	GROUND - CHASSIS/BATTERY
3	CBK04 (VT)	16	FUSE OR CIRCUIT BREAKER

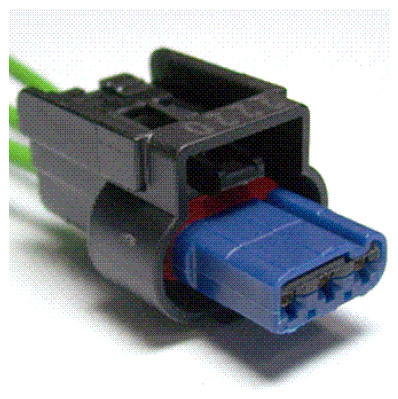

Available Pigtail Kits
Pigtail Kit Part Number WPT-1202	Service Part Number: BU2Z-14S411-ARA Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses Actuator - Turbocharger Waste Gate Coil - Ignition Sensor - Cam Shaft Position Sensor - Crank Shaft Position
