6F35 Transmission Connector End View (C1520B)

Fig 1: Identifying 6F35 Transmission Connector (C1520B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RET24 (BN-BU)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TSS/OSS/TRS) (SIG RTN)	2.0L/2.5L
1	RET33 (WH-VT)	20	SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) -	1.6L
2	VET33 (WH-OG)	20	SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) +
3	LE111 (VT-GN)	20	CTRL MOD. - POWERTRAIN # (TSS/OSS/TRS) (VBPWR)	2.0L/2.5L
3	LET57 (WH-GN)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE (TSS/OSS/TRS) (VBPWR)	1.6L

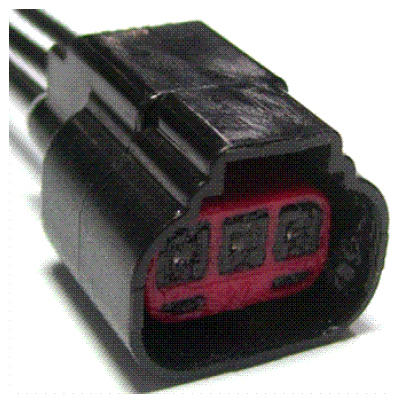

Available Pigtail Kits
Pigtail Kit Part Number WPT-990	Service Part Number: 8U2Z-14S411-ZB  Gauge: 14  Pin material: Tin (greased)  Cavities: 3  Vehicle Uses Sensor - Cam Shaft Position Sensor - Crank Shaft Position Sensor - Fuel Tank Pressure Transducer Sensor - Turbine Shaft Speed Switch - Fuel Delivery Pressure
Pigtail Kit Part Number WPT-921	Service Part Number: 8U2Z-14S411-ZA  Gauge: 16  Pin material: Tin  Cavities: 3  Vehicle Uses Pump - Vacuum Resistor - Blower Motor (Rear)
