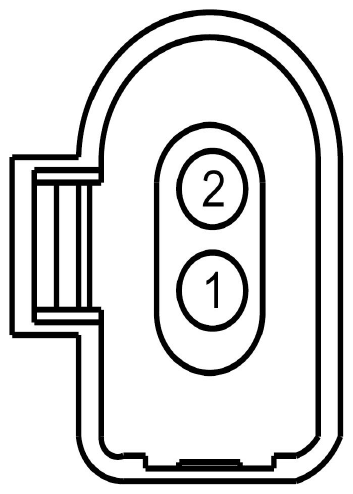

Washer Pump Motor Connector End View (C137)

Fig 1: Identifying Washer Pump Motor Connector (C137)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CRW24 (GY)	14	RELAY - FRONT WASHER
2	CRW23 (VT-GN)	14	RELAY - REAR WASHER

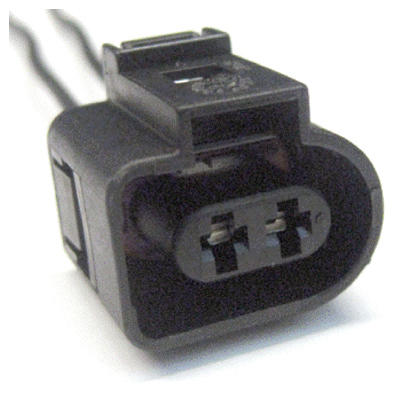

Available Pigtail Kits
Pigtail Kit Part Number WPT-908	Service Part Number: 8U2Z-14S411-MA  Gauge: 14  Pin material: Tin  Cavities: 2  Vehicle Uses Monitor - Video/DVD Motor - Convertible Top
