Horn Connector End View (C131)

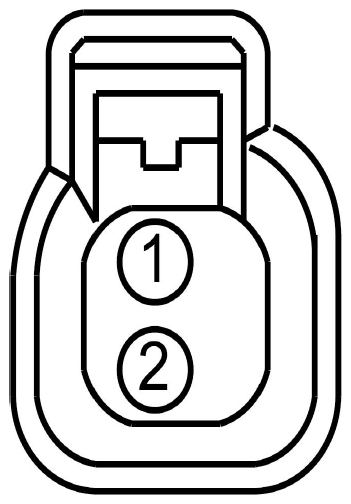

Fig 1: Identifying Horn Connector (C131)
G08741881Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 GD123 (BK-GY) 16 GROUND - FENDER FRONT RIGHT
2 SRH01 (YE-RD) 16 RELAY - HORN
Available Pigtail Kits
Pigtail Kit Part Number WPT-1051

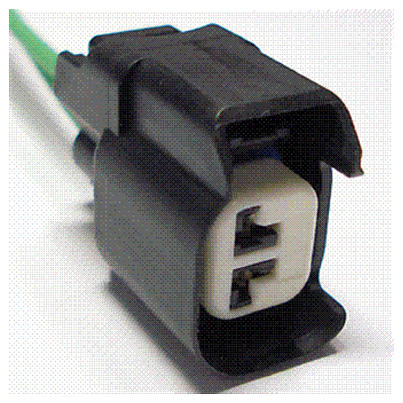

G08741882
 Service Part Number: 5U2Z-14S411-ZB
Gauge: 16
Pin material: Silver
Cavities: 2
Vehicle Uses
  • Fuel Injector
  • Horn
  • Switch - Backup Lamp
  • Switch - Hood Ajar
Pigtail Kit Part Number WPT-159

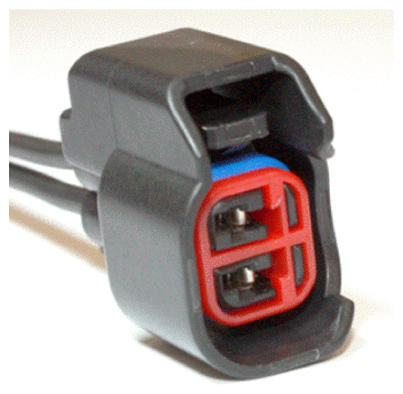

G08741883
 Service Part Number: 1U2Z-14S411-BPA
Gauge: 14
Pin material: Tin
Cavities: 2
Vehicle Uses
  • A/C Compressor Clutch
  • Fuel Injector
  • Horn
  • Sensor - Brake Fluid Level
  • Sensor - Fuel Filler Door
  • Sensor - Washer Fluid level
  • Speaker - Door
  • Speaker - Rear
  • Switch - Deck Lid/Lift Gate Ajar
  • Switch - Hood Ajar
  • Switch - Power Steering Pressure
Pigtail Kit Part Number WPT-871

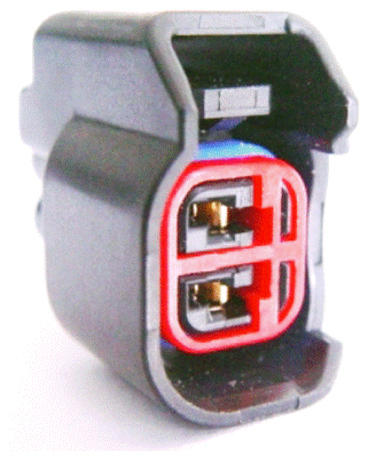

G08741884
 Service Part Number: 6U2Z-14S411-GA
Gauge: 16
Pin material: Gold
Cavities: 2
Vehicle Uses
  • Switch - Brake Pressure
