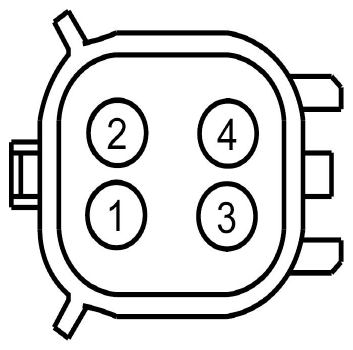

Heated Oxygen Sensor (Ho2S) #12 Connector End View (C142)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBK02 (GN) | 18 | FUSE OR CIRCUIT BREAKER | |
| 1 | CBK02 (GN) | 16 | FUSE OR CIRCUIT BREAKER | |
| 2 | CE233 (WH-OG) | 18 | CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) | |
| 3 | RE406 (GY-VT) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (SIG RTN) | |
| 4 | VE731 (YE-GN) | 18 | SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) |
| Available Pigtail Kits | |
|---|---|

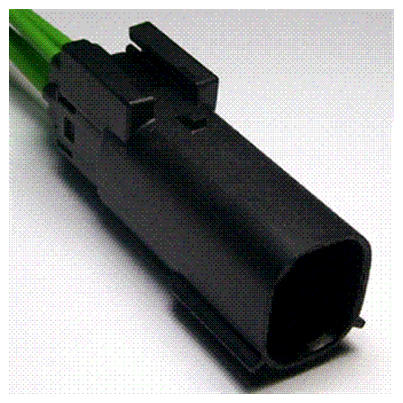

| Pigtail Kit Part Number WPT-1288 | Service Part Number: CU2Z-14S411-ZA Gauge: 16 Pin material: Silver Cavities: 4 Vehicle Uses
|
