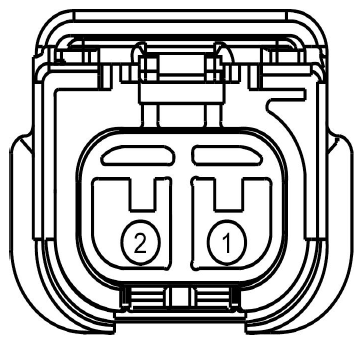

Coil On Plug (Cop) 4 Connector End View (C114)

Fig 1: Identifying Coil On Plug (COP) 4 Connector (C114)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE306 (GN-VT)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP4C)
2	CBK04 (VT)	18	FUSE OR CIRCUIT BREAKER

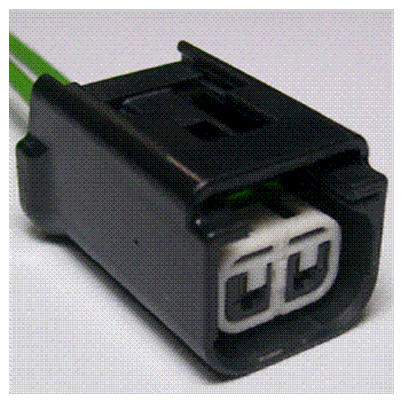

Available Pigtail Kits
Pigtail Kit Part Number WPT-1133	Service Part Number: BU2Z-14S411-FA  Gauge: 16  Pin material: Silver  Cavities: 2  Vehicle Uses Coil - Ignition
