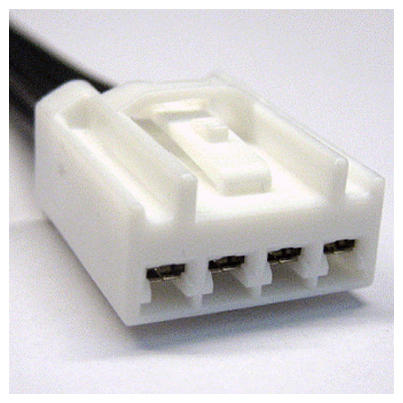

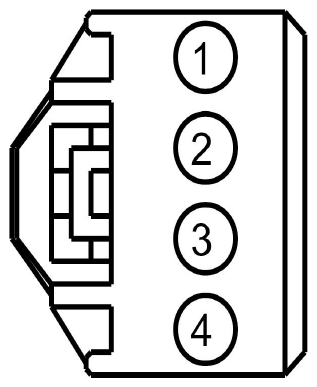

Brake Pedal Position (BPP) Switch Connector End View (C278)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBB21 (GY-RD) | 20 | FUSE OR CIRCUIT BREAKER | |
| 2 | GD120 (BK-GN) | 20 | GROUND - FENDER FRONT LEFT | |
| 3 | CES09 (VT-OG) | 20 | SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) + | |
| 4 | CCB08 (VT-WH) | 20 | SWITCH - BRAKE ON/OFF (BPP) NORMAL OPEN |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-912 | Service Part Number: 8U2Z-14S411-HA Gauge: 14 Pin material: Tin Cavities: 4 Vehicle Uses
|
