RH Rear Door Wiring Harness Connectors

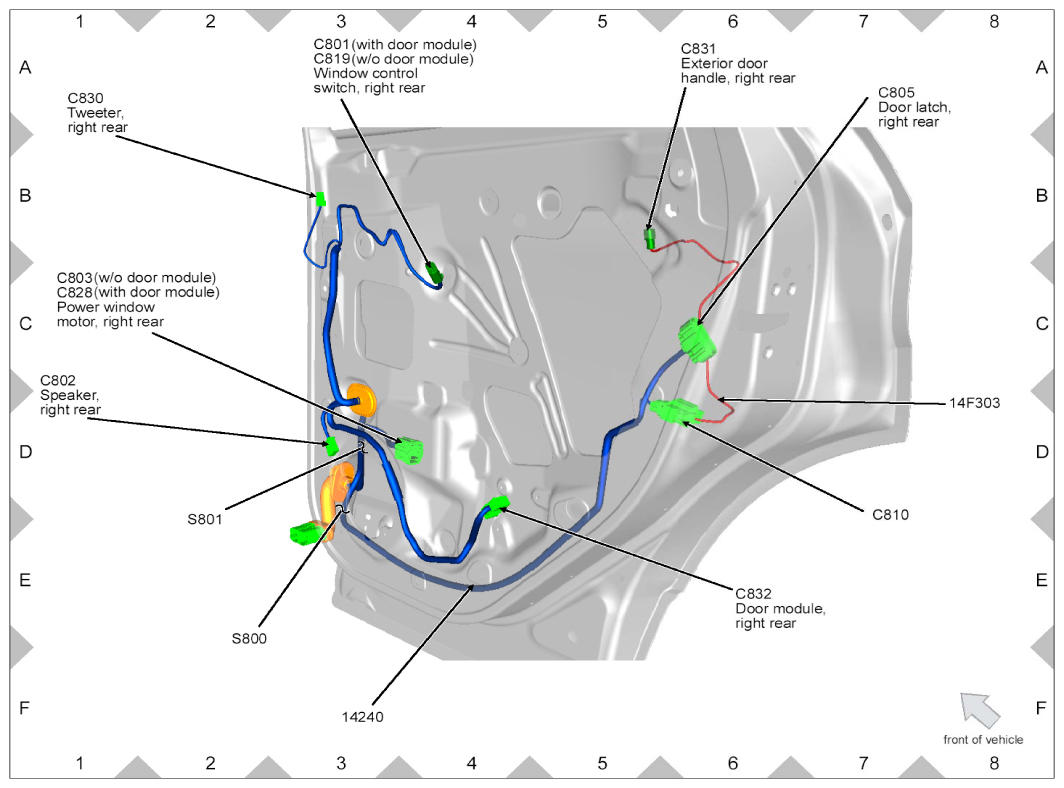

Fig 1: RH Rear Door Wiring Harness Connectors Location

G08742704

Courtesy of FORD MOTOR CO.
