Electric Booster Heater Connector End View (C2603C)

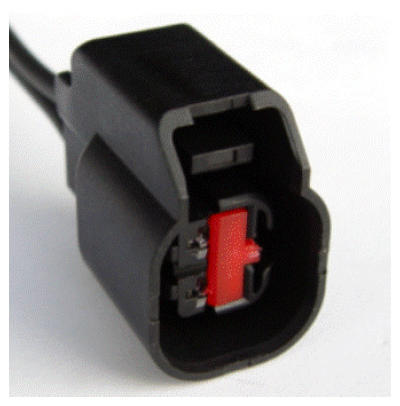

Fig 1: Identifying Electric Booster Heater Connector (C2603C)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBP85 (YE)	22	FUSE OR CIRCUIT BREAKER
2	CHP01 (BU)	22	CTRL MOD. - PTC HEATER # HEATER

Available Pigtail Kits
Pigtail Kit Part Number WPT-373	Service Part Number: 3U2Z-14S411-CNA  Gauge: 14  Pin material: Tin  Cavities: 2  Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Actuator - Liftgate Glass Lamp - CHMSL (Center High Mount Stop Lamp) Module - Warning Chime/Beltminder Speaker - Door Speaker - Front Speaker - Rear Speaker - Subwoofer Switch - Brake Deactivation Switch - Brake Pedal Position Switch - Deck Lid/Hatch Release Switch - Stop Lamp
Pigtail Kit Part Number WPT-966	Service Part Number: 3U2Z-14S411-CNB  Gauge: 14  Pin material: Silver  Cavities: 2  Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Actuator - Liftgate Glass Lamp - CHMSL (Center High Mount Stop Lamp) Module - Warning Chime/Beltminder Sensor - Brake Pedal Position Speaker - Door (front) Speaker - Door (rear) Speaker - Front Speaker - Rear Speaker - Subwoofer Switch - Brake Deactivation Switch - Stop Lamp
