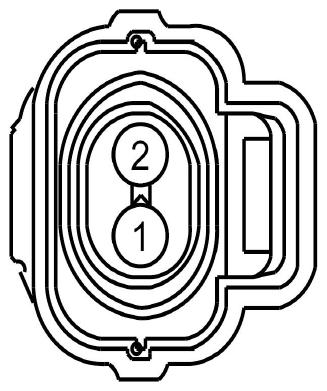

Variable Camshaft Timing 12 (VCT12) Solenoid Connector End View (C1671)

Fig 1: Identifying Variable Camshaft Timing 12 (VCT12) Solenoid Connector (C1671)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB33 (WH-BN)	18	FUSE OR CIRCUIT BREAKER
2	CE508 (VT-BN)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 12 (VCT12) SOLENOID

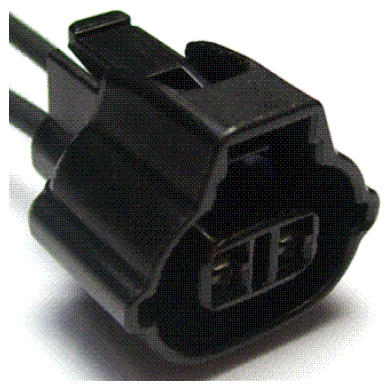

Available Pigtail Kits
Pigtail Kit Part Number WPT-1269	Service Part Number: CU2Z-14S411-SA  Gauge: 14  Pin material: Tin  Cavities: 2  Vehicle Uses Solenoid - Engine Variable Timing
