Variable Camshaft Timing 12 (VCT12) Solenoid Connector End View (C1649)

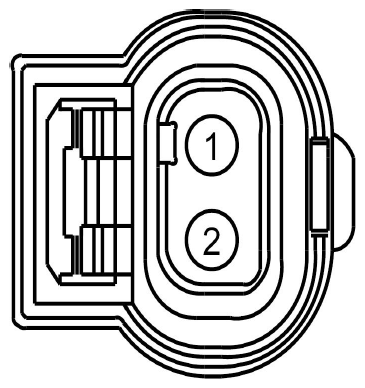

Fig 1: Identifying Variable Camshaft Timing 12 (VCT12) Solenoid Connector (C1649)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE422 (WH-OG)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 12 (VCT12) SOLENOID
2	CBK02 (GN)	18	FUSE OR CIRCUIT BREAKER

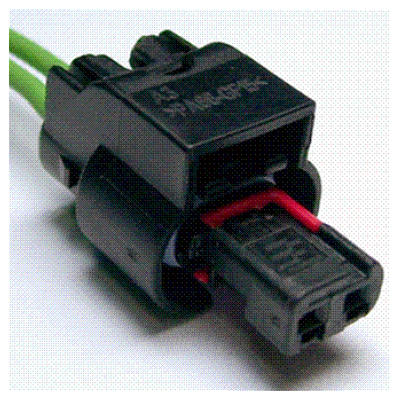

Available Pigtail Kits
Pigtail Kit Part Number WPT-1251	Service Part Number: CU2Z-14S411-DA  Gauge: 18  Pin material: Silver  Cavities: 2  Vehicle Uses Solenoid - Engine Variable Timing
