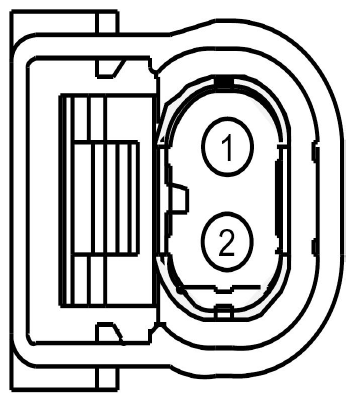

Turbocharger Bypass (TCBY) Valve Connector End View (C1650)

Fig 1: Identifying Turbocharger Bypass (TCBY) Valve Connector (C1650)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB34 (VT-BN)	18	FUSE OR CIRCUIT BREAKER
2	CE167 (YE-OG)	18	CTRL MOD. - POWERTRAIN # BYPASS SOLENOID VALVE (TCBY)

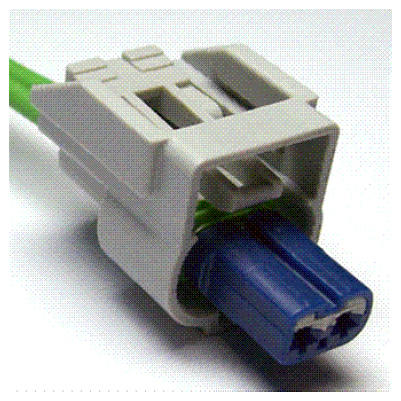

Available Pigtail Kits
Pigtail Kit Part Number WPT-1303	Service Part Number: CU2Z-14S411-ATA  Gauge: 16  Pin material: Silver  Cavities: 2  Vehicle Uses Solenoid - Turbo Charger Bypass
