Parking Brake Cable - Rear: Removal

NOTE: Steps in the removal procedure may contain installation details.

All vehicles

  1. Release the fuel system pressure. Refer to FUEL SYSTEM - GENERAL INFORMATION .
  2. G08611180
  3. G08611176
  4. Remove the rear wheels and tires. Refer to WHEELS AND TIRES .
    • To install, tighten to 25 Nm (18 lb-ft).
      G08611183

    All-Wheel Drive (AWD) vehicles

    • To install, tighten to 25 Nm (18 lb-ft).
      G08611184

    All vehicles

    • To install, tighten to 11 Nm (97 lb-in).

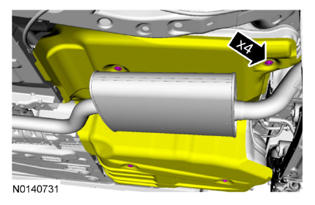

      G08611194
    • To install, tighten to 11 Nm (97 lb-in).
      G08611185
  9. G08611186
  10. G08056127
  11. Disconnect the fuel and vapor tube quick connect couplings. Refer to FUEL SYSTEM - GENERAL INFORMATION

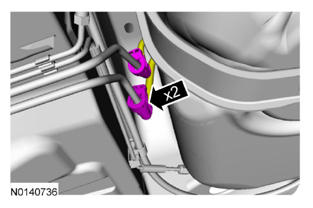

    G08611198

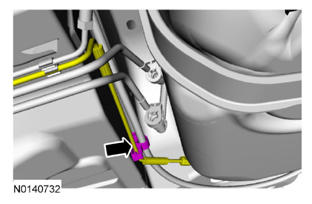

  12. G08611199

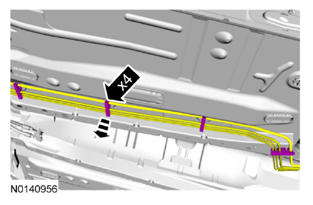

  13. G08611200
  14. On both sides

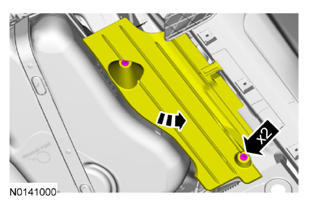

    G08611201
  15. On both sides

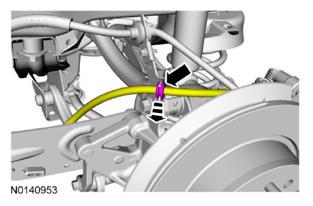

    G08611202
  16. On both sides.
    G08056077
    • To install, tighten the parking brake cable bracket-to-body bolts to 11 Nm (97 lb-in).
    • To install, tighten the parking brake cable guide bolts to 1.9 Nm (17 lb-in).

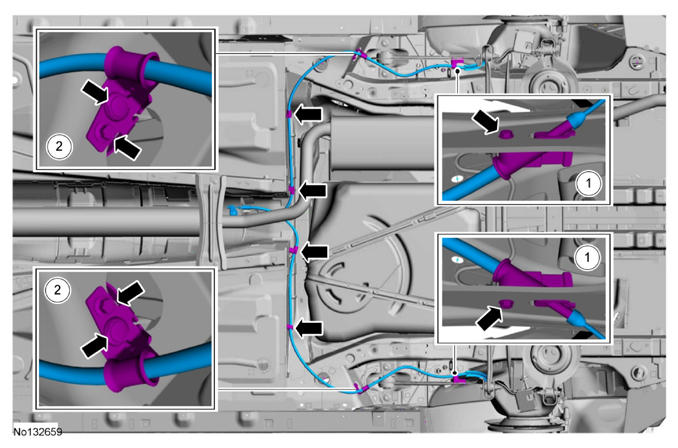

      G08611204
