Parking Brake Cable Adjustment

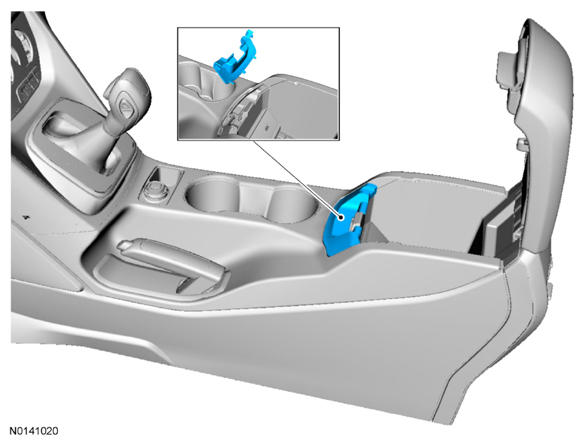

All Vehicles

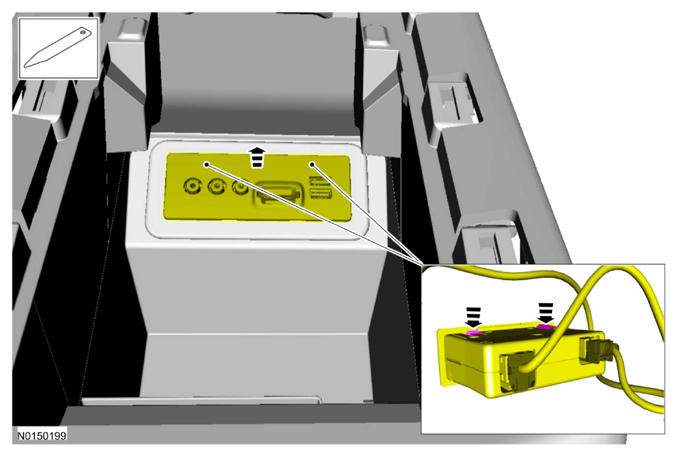

2. Vehicles equipped with a media hub

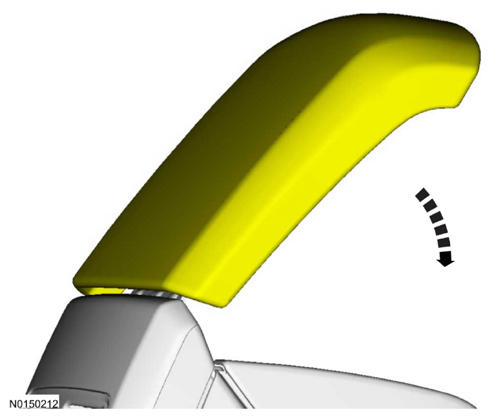

3. All vehicles

5. With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .

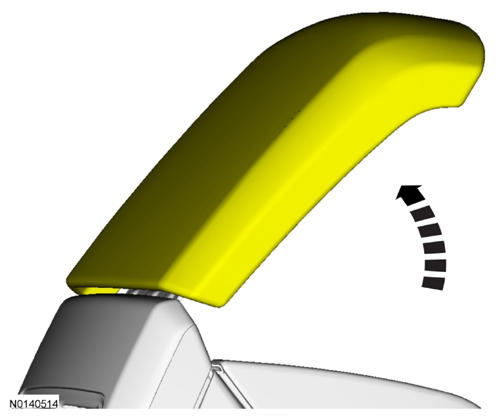

6. NOTE: Make sure the parking brake control is fully released.

   General equipment: Wire type feeler gauge.

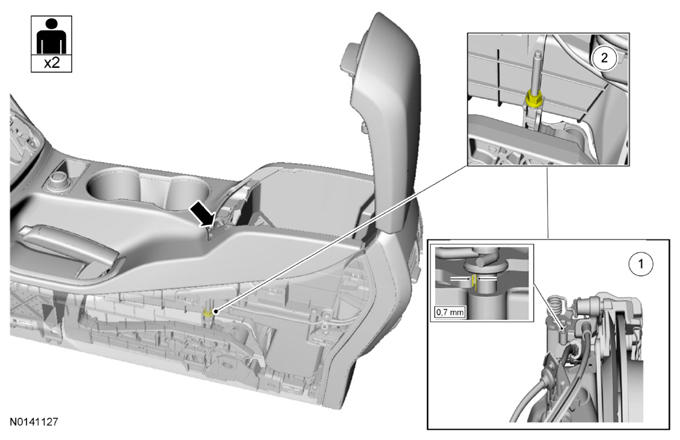

   1. Insert a 0.7 mm (0.027 in) feeler gauge between the parking brake lever and the brake caliper abutment, on both sides.

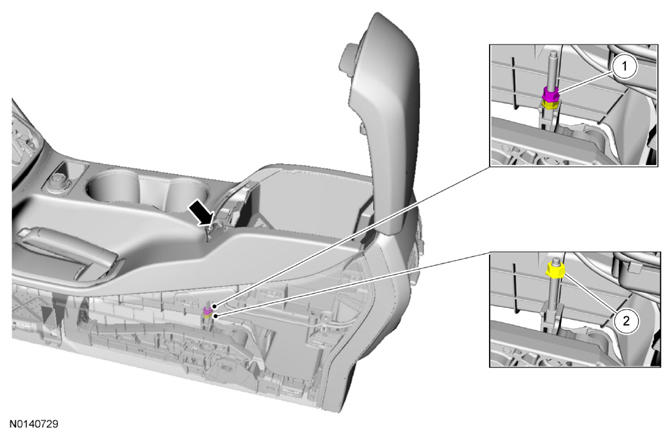

   2. Tighten the parking brake cable adjustment nut until movement is observed on one of the parking brake levers.
   3. Remove the feeler gauges.

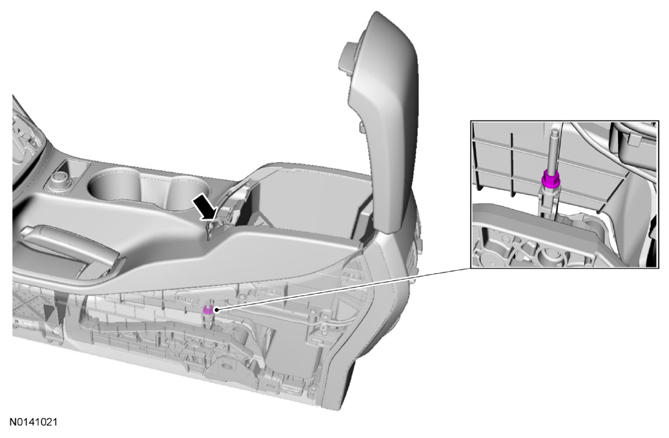

7. • Tighten to 2 Nm (18 lb-in).

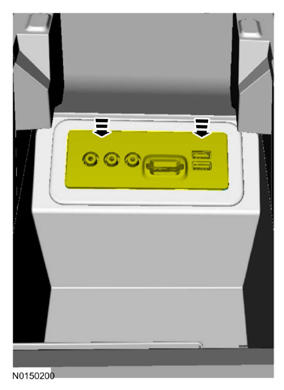

   Vehicles equipped with a media hub

8. All vehicles
