Brake Pedal and Bracket: Removal

NOTE: Steps in the removal procedure may include installation details.
  1. Remove the accelerator pedal. Refer to ACCELERATION CONTROL .
  2. Remove the stoplamp switch. Refer to EXTERIOR LIGHTING .

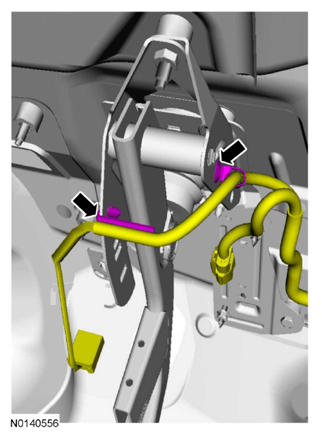

  3. G08611205

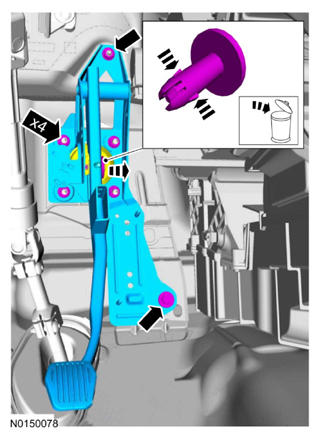

  4. Discard the specified component. Follow local disposal regulations.
    • To install, tighten to 23 Nm (17 lb-ft).
    G08611206
