Brake Fluid Reservoir: Removal
WARNING:
Before beginning any service procedure in this information, refer to SAFETY WARNINGS in
SERVICE INFORMATION
. Failure to follow this instruction may result in serious personal injury.
NOTE:
Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.
NOTE:
Steps in the removal procedure may include installation details.

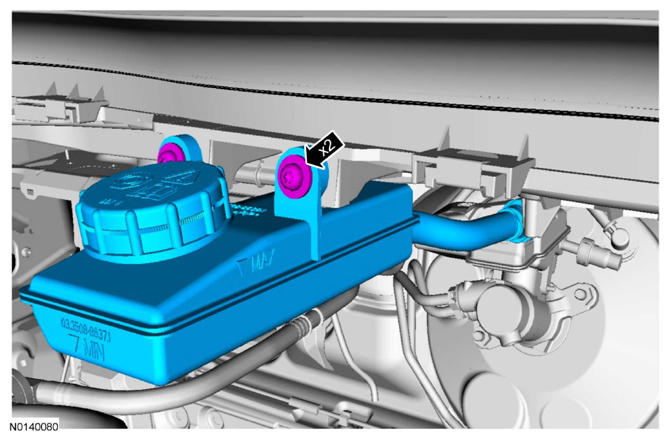

Remote brake fluid reservoir
- Extract the fluid with a syringe.

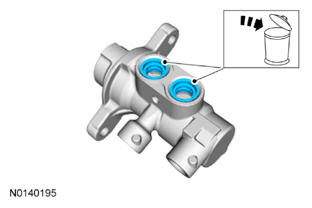

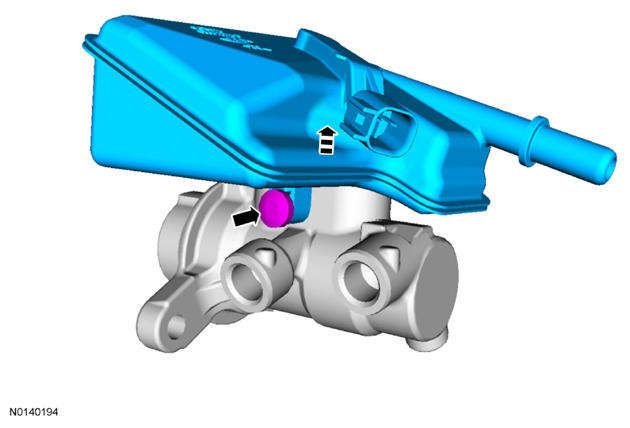

Brake master cylinder fluid reservoir
- Remove the brake master cylinder. Refer to BRAKE MASTER CYLINDER .
- Discard the specified component. Follow local disposal regulations.
Remote brake fluid reservoir
