Removal and Installation

  1. Drain the coolant. Refer to ENGINE COOLING .
  2. Recover the refrigerant. Refer to CLIMATE CONTROL SYSTEM - ELECTRONIC MANUAL TEMPERATURE CONTROL (EMTC) or CLIMATE CONTROL SYSTEM - DUAL AUTOMATIC TEMPERATURE CONTROL (DATC) .
  3. NOTE: Make sure all openings are sealed.

    Remove the evaporator pipe nut and flange and position the pipe aside.

    • Disconnect the electrical connector.
    • To install, tighten to 11 Nm (97 lb-in).
      G08100921

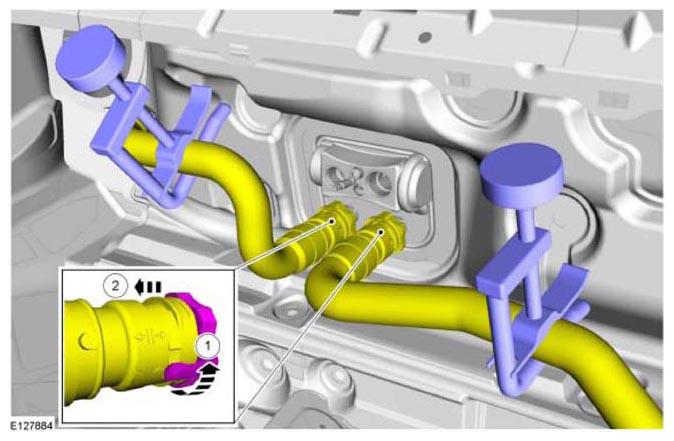

  4. NOTE: Make sure all openings are sealed.

    Clamp and disconnect the heater lines.

    G08100922
  5. Remove both front doors. Refer to BODY CLOSURES .
  6. Remove the transmission selector lever. Refer to AUTOMATIC TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .
  7. Disconnect the battery. Refer to BATTERY, MOUNTING AND CABLES .

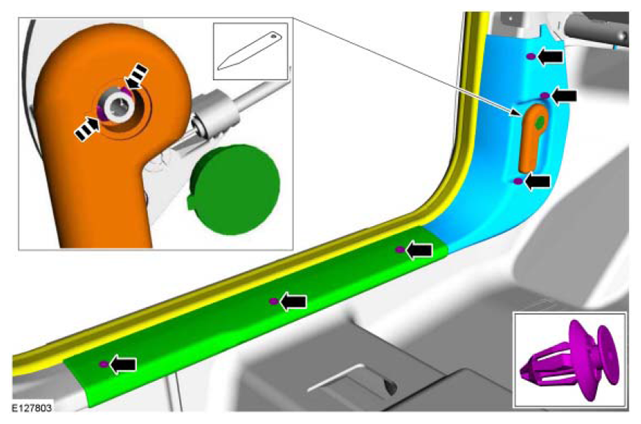

  8. Position the weather strip aside and remove the LH side lower cowl trim panel and scuff plate.
    G08409892
  9. Position the carpet aside and remove the 2 LH side ground strap bolts.
    • To install, tighten to 12 Nm (106 lb-in).
      G08100927

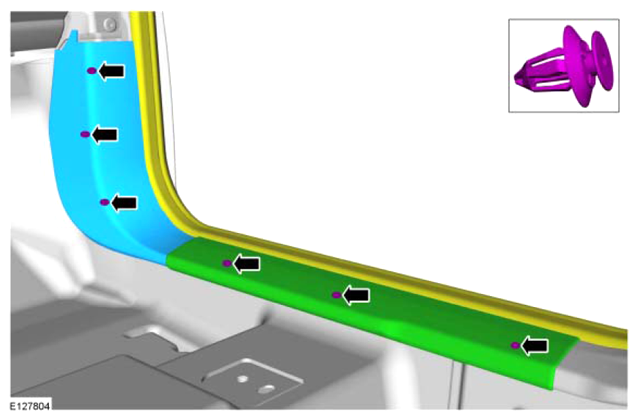

  10. Position the weather strip aside and remove the RH side lower cowl trim panel and scuff plate.
    G08409894
  11. Position the carpet aside and remove the RH side ground strap bolt.
    • To install, tighten to 12 Nm (106 lb-in).
      G08100929
  12. NOTE: RH side shown in illustration, LH side similar.

    Remove the RH and LH instrument panel side finish panels.

    G08618202

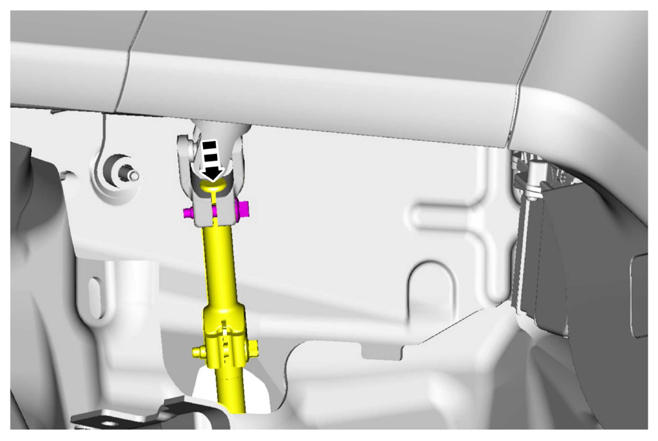

  13. NOTE: Do not allow the steering wheel to rotate while the steering column shaft is disconnected, or damage to the clockspring may result. If there is evidence that the shaft has rotated, remove and recenter the clockspring. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .

    Remove and discard the steering column shaft-to-steering gear bolt and disconnect the steering column shaft from the steering gear.

    • To install, tighten to 28 Nm (21 lb-ft).
      G08618874
  14. Remove the lower RH side instrument panel insulator panel.
    G08408788
  15. Remove the 3 screws and remove the Heating Ventilation Air Conditioning (HVAC) ducts.
    G08409899
  16. Remove the HVAC ducts.
    G08409900

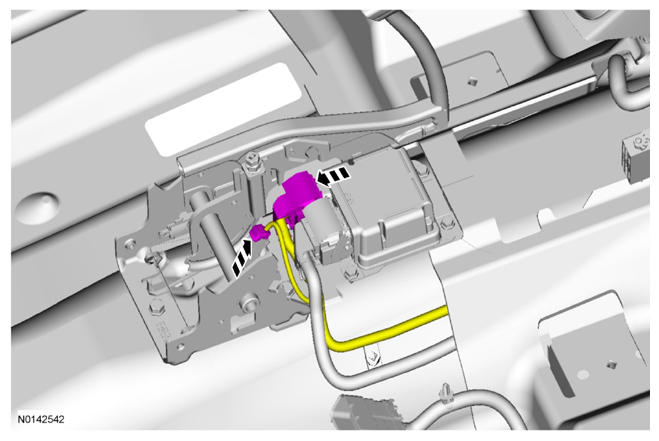

  17. Disconnect the Restraints Control Module (RCM) electrical connector and the emergency brake electrical connector.
    G08618878

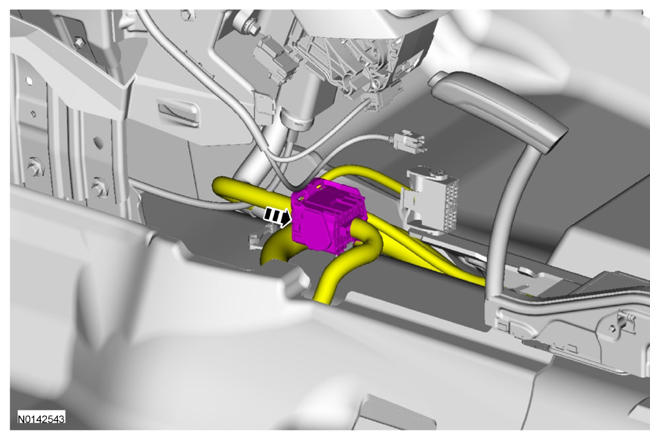

  18. Disconnect the electrical connector.
    G08618879

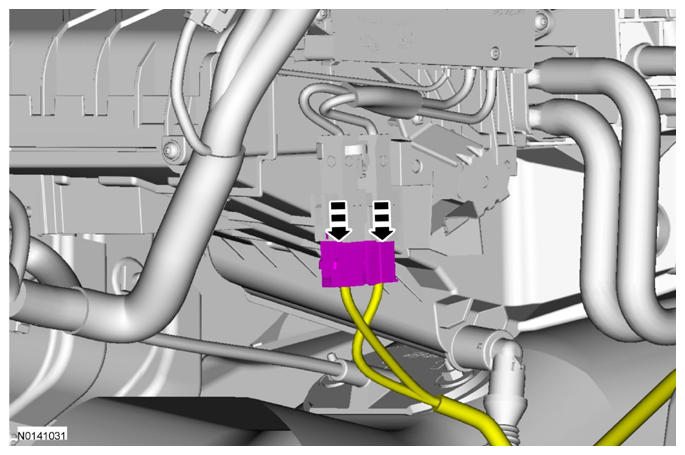

  19. Disconnect the 2 electrical connectors.
    G08618880

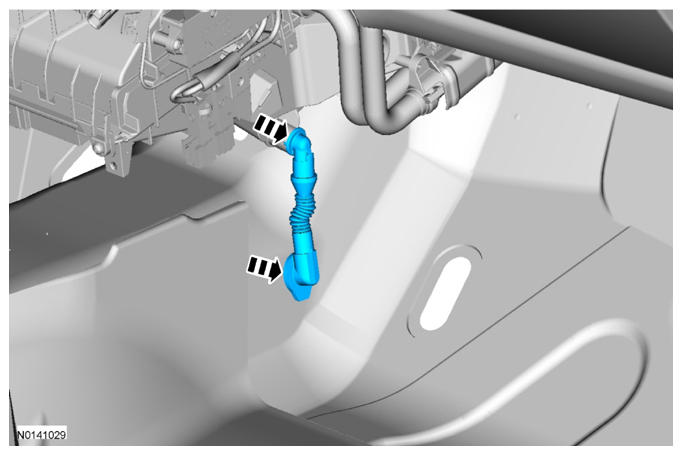

  20. Remove the evaporator drain tube.
    G08618881

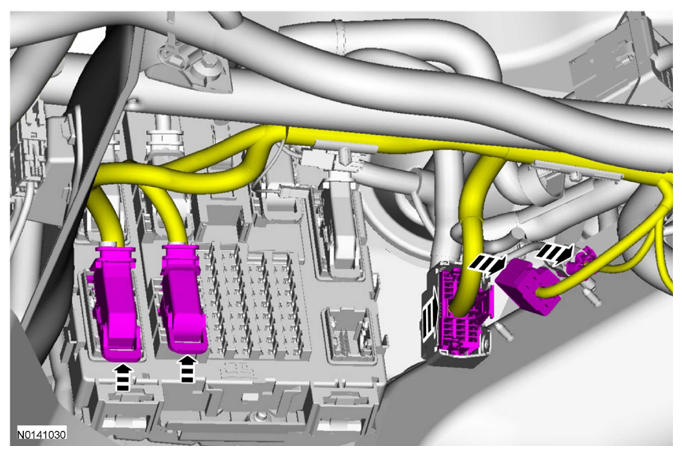

  21. Disconnect the 5 electrical connectors at lower RH side of the instrument panel.
    G08618882
  22. Remove the defroster grille panel. Refer to DEFROSTER GRILLE PANEL .

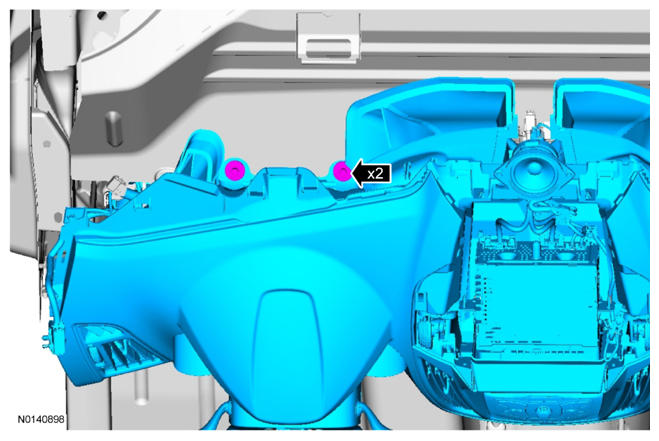

  23. Remove the 2 upper instrument panel cowl bolts.
    • To install, tighten to 25 Nm (18 lb-ft).
      G08618883

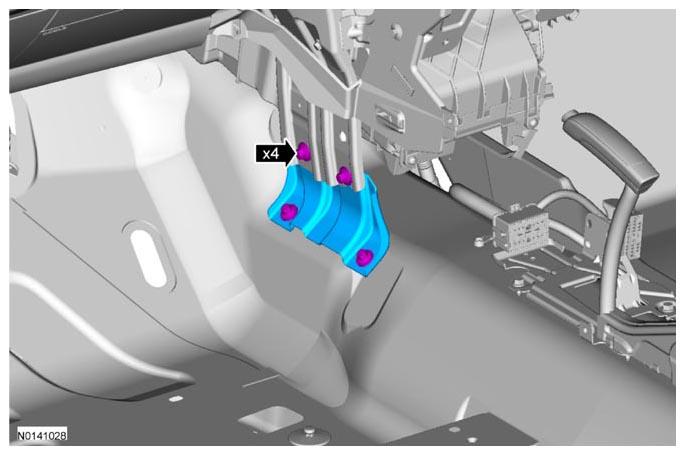

  24. Remove the 4 bolts and the center instrument panel brace.
    • To install, tighten to 25 Nm (18 lb-ft).
      G08615128
  25. NOTE: RH side shown in illustration, LH side similar.

    Remove the LH and RH instrument panel side bolts.

    • To install, tighten to 40 Nm (30 lb-ft).
      G08100938
  26. NOTE: To avoid damaging the instrument panel, an assistant is required when carrying out the following steps.
    NOTE: Remove the bolts from one side completely and support the instrument panel before removing the bolts from the opposite side.

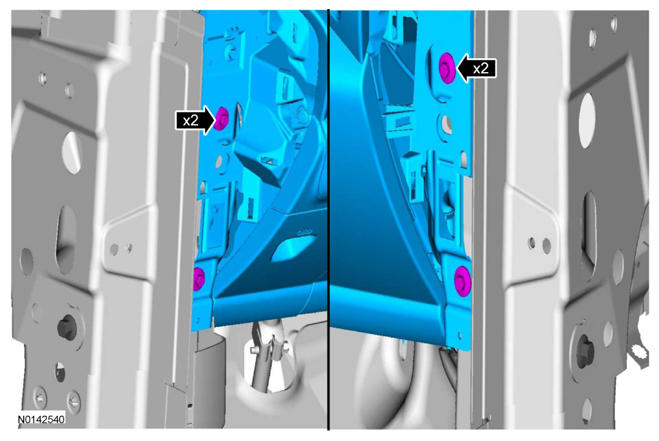

    Remove the 4 LH and RH instrument panel-to-body bolts.

    • To install, tighten to 25 Nm (18 lb-ft).
      G08618886
  27. NOTE: Make sure not to damage the instrument panel when removing the instrument panel from the vehicle.
    NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.

    Remove the instrument panel from the vehicle.

    • Rotate the instrument panel face down and remove through the LH front door opening.
  28. To install, reverse the removal procedure.
