Removal and Installation

All vehicles

  1. Remove the transmission selector lever. Refer to SELECTOR LEVER .
  2. Remove the instrument panel defroster grille panel. Refer to DEFROSTER GRILLE PANEL .

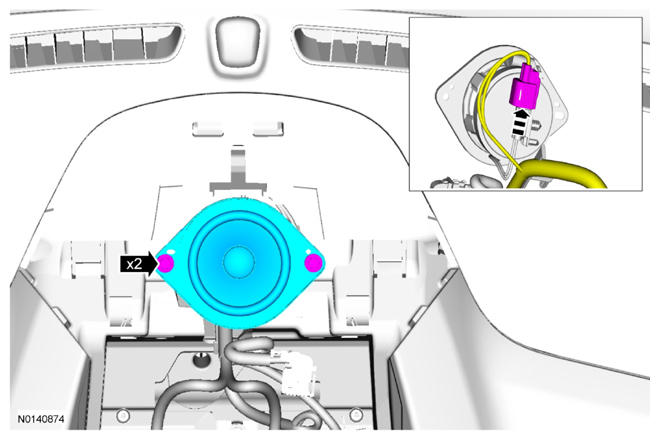

  3. If equipped remove the 2 instrument panel speaker bolts and the speaker.
    • Disconnect the electrical connector.
    • To install, tighten to 2 Nm (18 lb-In).
      G08618172

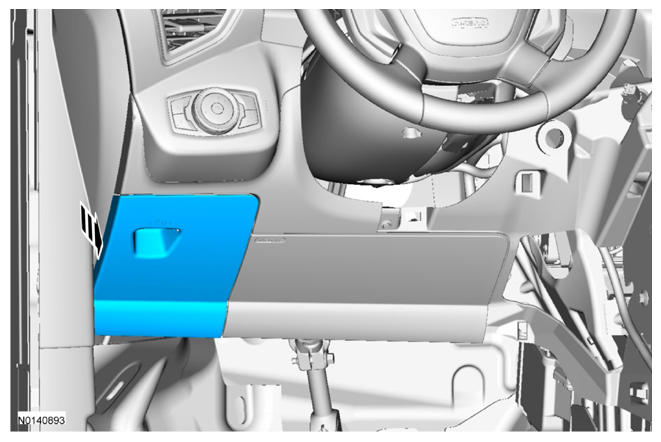

  4. Remove the Data Link Connector (DLC) cover.
    G08618271
  5. Remove the drivers side knee air bag module. Refer to, SUPPLEMENTAL RESTRAINT SYSTEM .
  6. Remove the steering column. Refer to STEERING COLUMN .

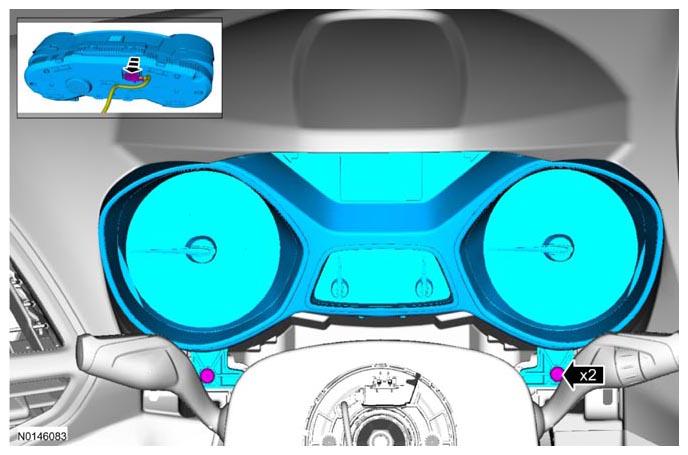

  7. Remove the 2 Instrument Panel Cluster (IPC) screws, release the upper retainer and remove the IPC.
    • Disconnect the electrical connector.
    • To install, tighten to 1.5 Nm (14 lb-in).
      G08617919
  8. Remove the bolt and the Global Positioning System Module (GPSM).
    • Disconnect the electrical connector.
    • To install, tighten to 2 Nm (18 lb-in).

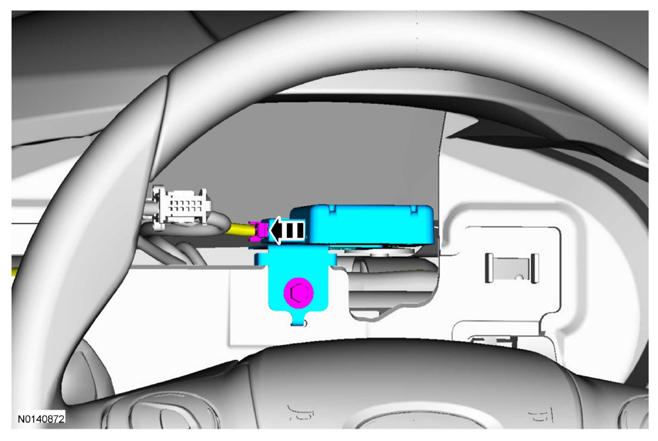

      G08618032
  9. NOTE: RH side shown in illustration, LH side similar.

    Remove the RH and LH instrument panel side finish panels.

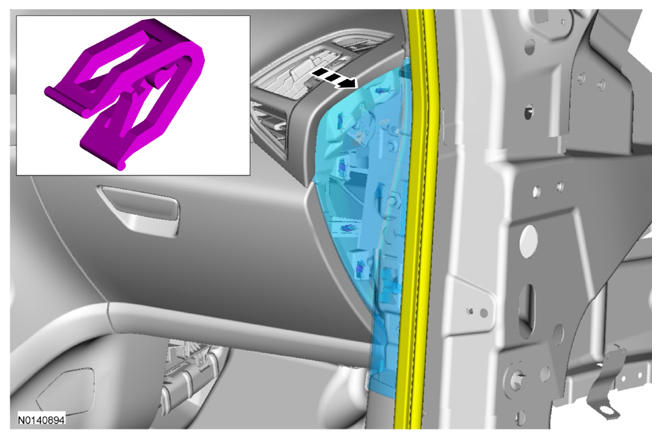

    G08618202
  10. Remove the 5 screws and remove the lower LH instrument panel trim panel.
    • To install, tighten to 3 Nm (27 lb-in).

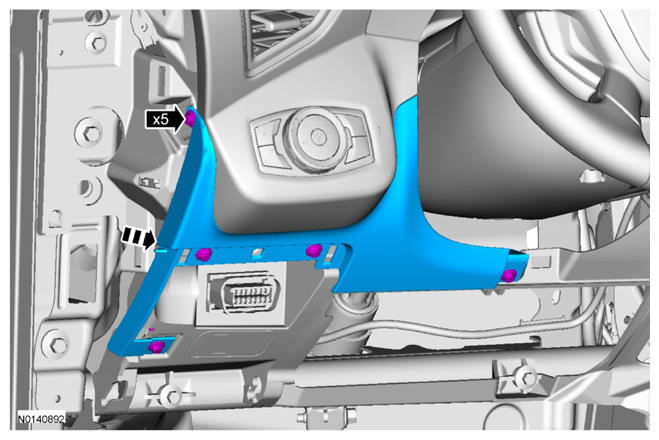

      G08618900
  11. Remove the Data Link Connector (DLC).

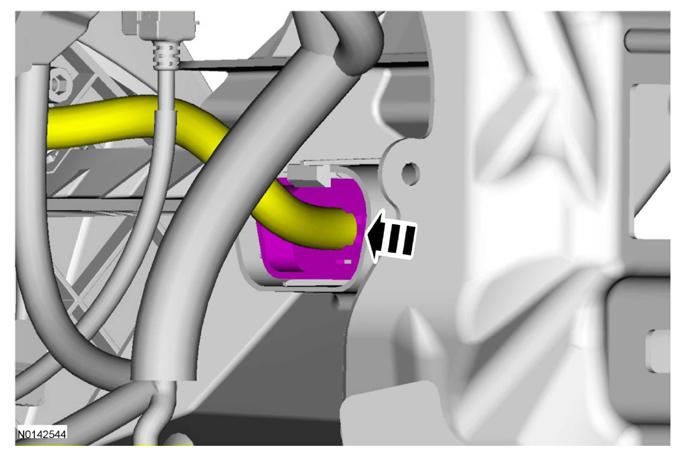

    G08618901

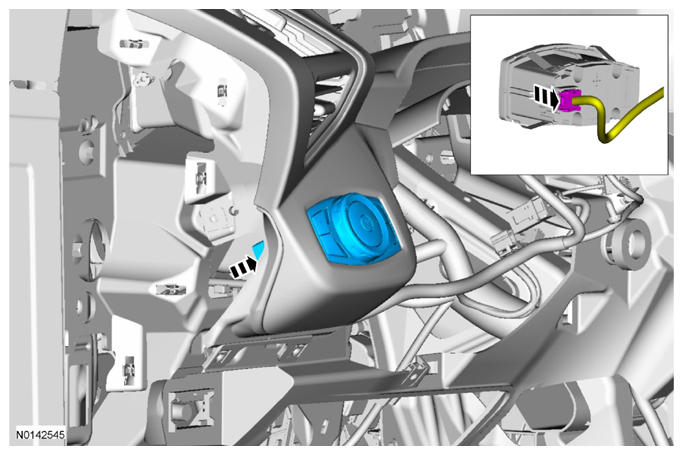

  12. Remove the headlamp switch.
    • Disconnect the electrical connector.
      G08618902
  13. Remove the Heating Ventilation Air Conditioning (HVAC) bezel and module.
    • Disconnect the electrical connectors.
    • To install, tighten to 2 Nm (16 lb-in).

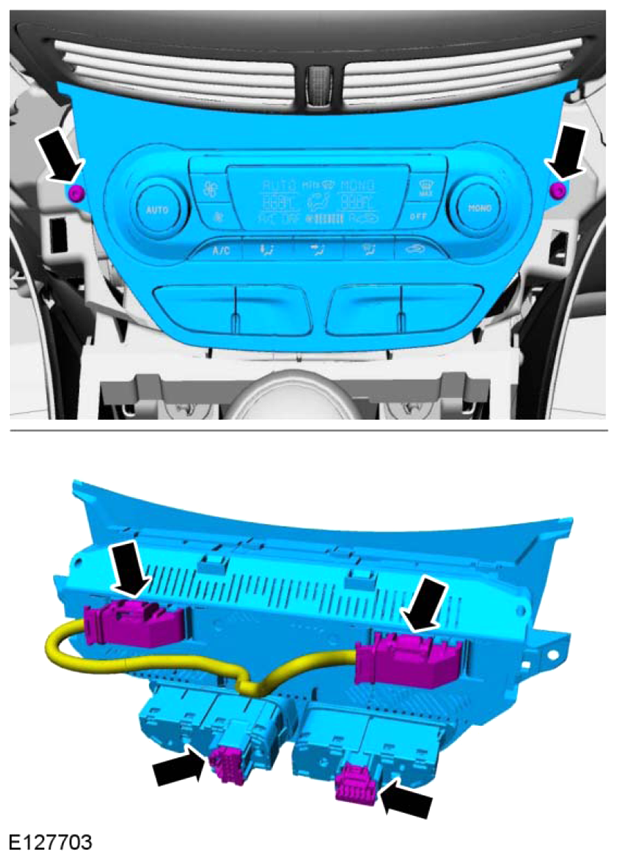

      G08409927

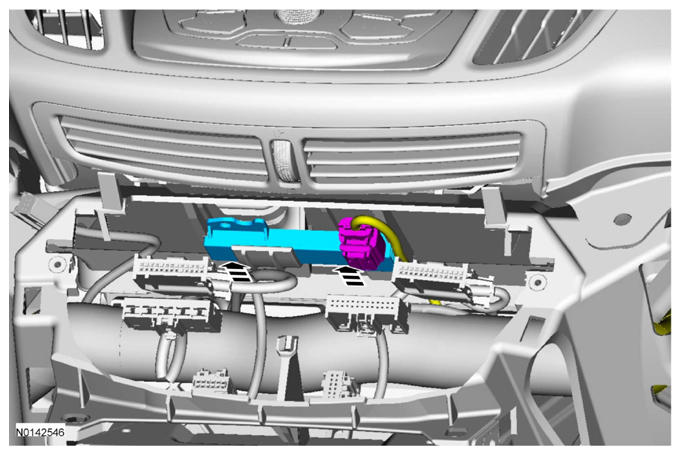

  14. Remove the instrument panel Remote Keyless Entry (RKE) antenna.
    • Disconnect the electrical connector.
      G08618904
  15. Remove the lower RH side instrument panel insulator panel.
    G08408788

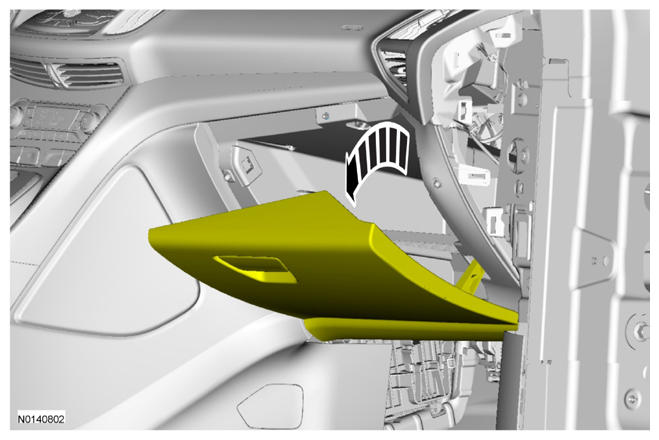

  16. G08618203

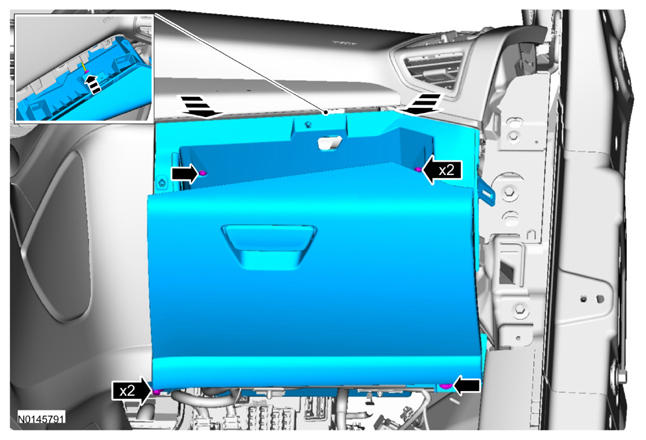

  17. Remove the 4 glove compartment screws and the glove compartment.
    • Disconnect the electrical connector.
    • To install, tighten to 2 Nm (18 lb-in).
      G08618275
  18. NOTE: Harness not shown in illustration for clarity.

    Remove the 2 passengers side air bag bolts.

    • Disconnect the electrical connectors.
    • To install, tighten to 8 Nm (71 lb-in).

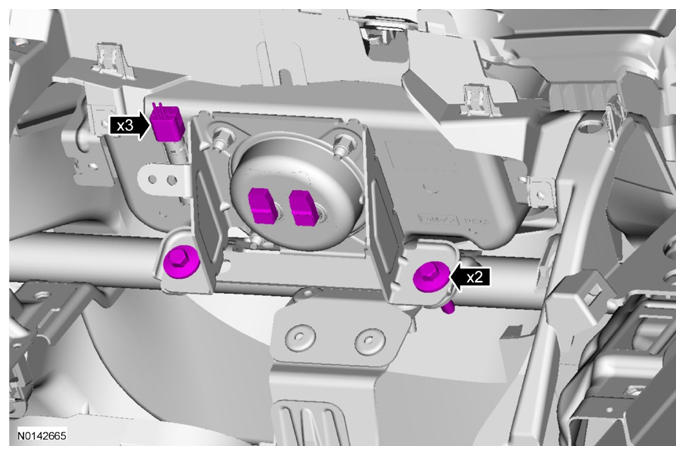

      G08618908
  19. Remove the 3 screws and remove the Heating Ventilation Air Conditioning (HVAC) ducts.

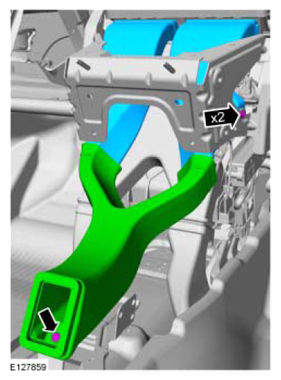

    G08409899

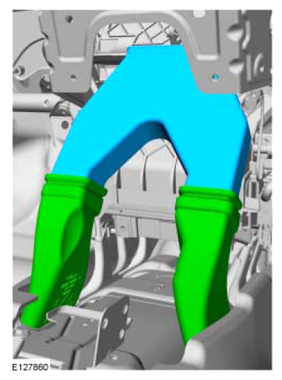

  20. Remove the HVAC ducts.
    G08409900

    Vehicles with 8 inch display

  21. Remove the Front Display Interface Module (FDIM). Depending on vehicle options refer to, INFORMATION AND ENTERTAINMENT SYSTEMS - 8 INCH (203MM) TOUCHSCREEN, 9 SPEAKERS or INFORMATION AND ENTERTAINMENT SYSTEMS - SONY 8 INCH (203MM) TOUCHSCREEN, 10 SPEAKERS .
  22. Remove the 2 bolts and the Audio Front Control Module (ACM).
    • Disconnect the electrical connectors.
    • To install, tighten to 3 Nm (27 lb-in).

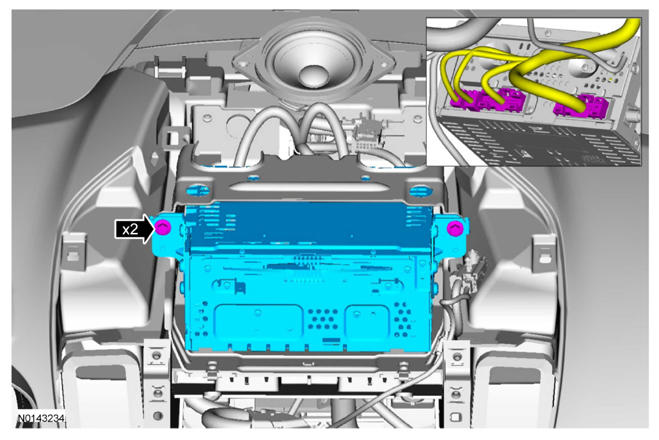

      G08618911

      All other displays

  23. Remove the Front Control/Display Interface Module (FCDIM). Depending on vehicle options refer to, INFORMATION AND ENTERTAINMENT SYSTEMS - MONOCHROMATIC DISPLAY, 6 SPEAKERS . or INFORMATION AND ENTERTAINMENT SYSTEMS - 4.2-INCH (107MM) SCREEN, 6 SPEAKERS .
  24. Remove the 2 bolts and the ACM.
    • Disconnect the electrical connectors.
    • To install, tighten to 3 Nm (27 lb-in).

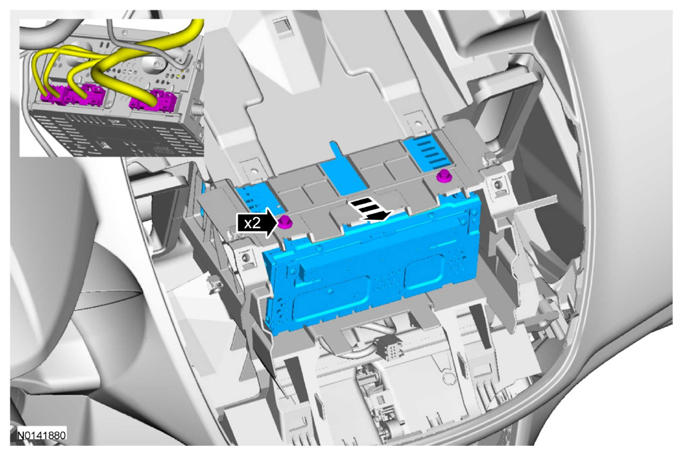

      G08618912

      All vehicles

  25. NOTE: RH side shown in illustration, LH side similar.

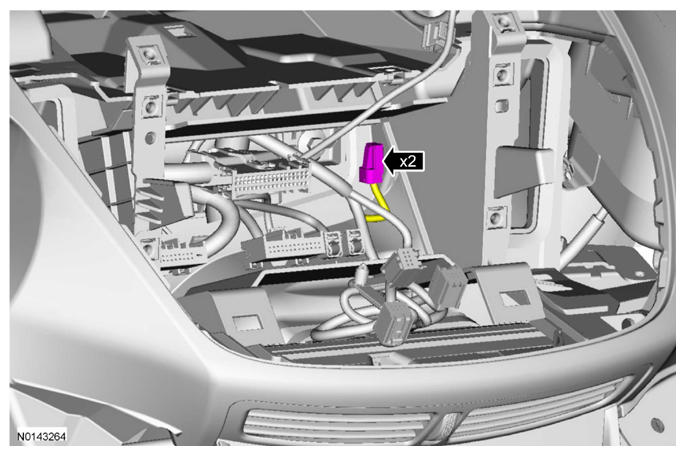

    If equipped remove the RH and LH HVAC blend door position sensors.

    G08618913
  26. NOTE: To avoid damaging the upper section, the aid of an assistant is required to carry out this step.
    NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the upper section or damage to the components may occur.

    Remove the 15 bolts and the instrument panel upper section.

    • To install, tighten to 3 Nm (27 lb-in).

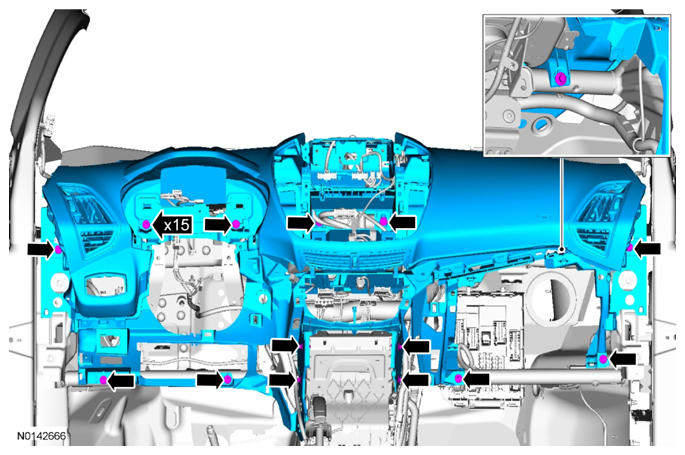

      G08618914
  27. NOTE: Install all the bolts finger tight before final tightening.

    To install, reverse the removal procedure.
