Removal and Installation

Vehicles with 8 inch display

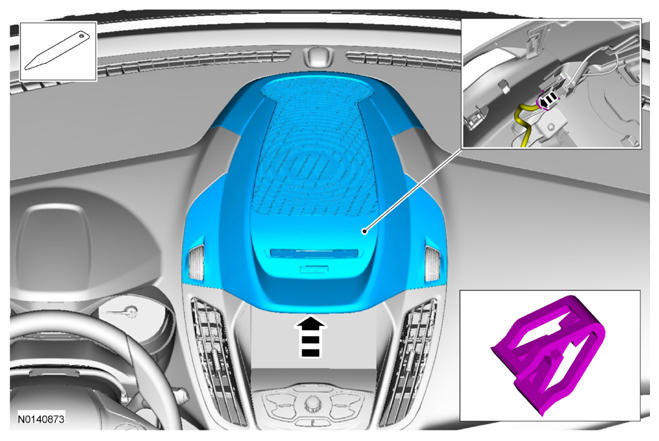

1. Remove the upper instrument panel finish panel.
   • Disconnect the electrical connector.

   All other displays

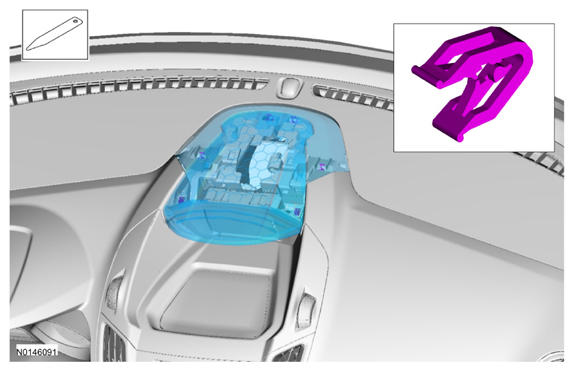

2. Remove the upper trim panel.

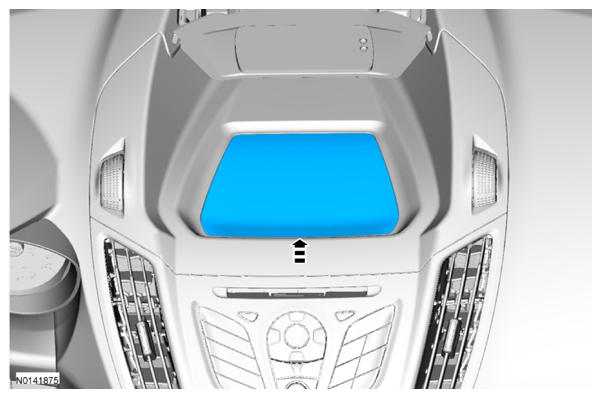

3. Remove the upper instrument panel finish panel matt.

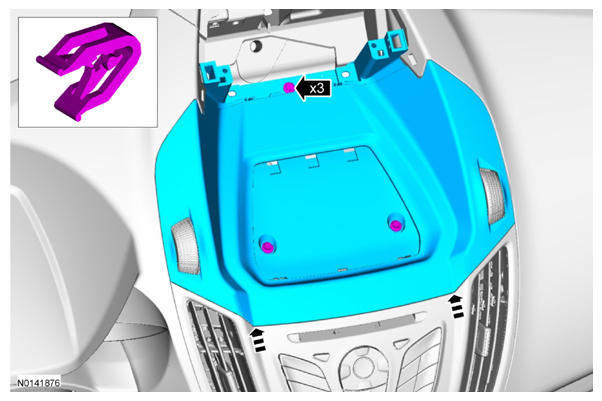

4. Remove the three screws and remove the upper instrument panel finish panel.
   • To install, tighten to 3 Nm (27 lb-in).

   All vehicles

5. To install, reverse the removal procedure.
