Removal and Installation

All vehicles

1. Remove the upper instrument panel center finish panel. For additional information, refer to INSTRUMENT PANEL FINISH PANEL - CENTER, UPPER .

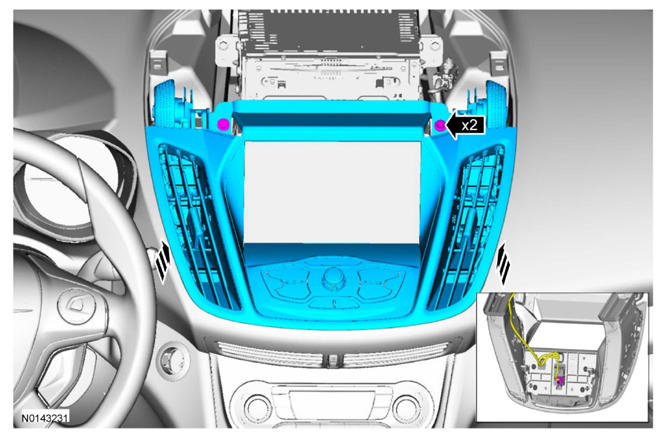

   Vehicles with 8 inch display

2. Remove the 2 bolts and remove the center instrument panel finish panel.
   • To install, tighten to 3 Nm (27 lb-in).

   All other displays

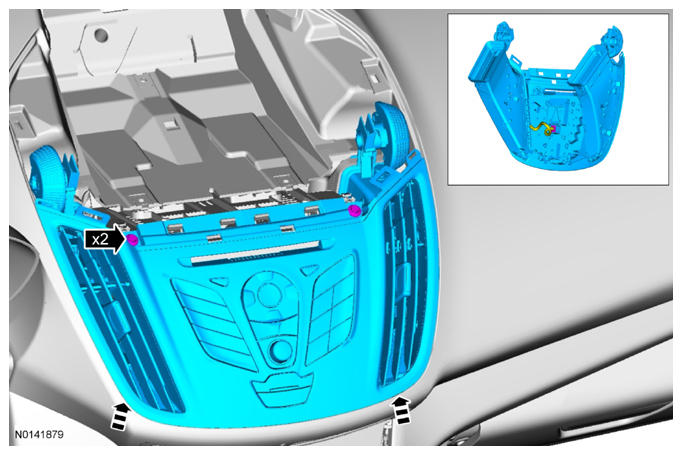

3. Remove the 2 bolts and remove the center instrument panel finish panel.
   • Disconnect the electical connector.
   • To install, tighten to 3 Nm (27 lb-in).

     All vehicles

4. To install, reverse the removal procedure.
