Removal and Installation

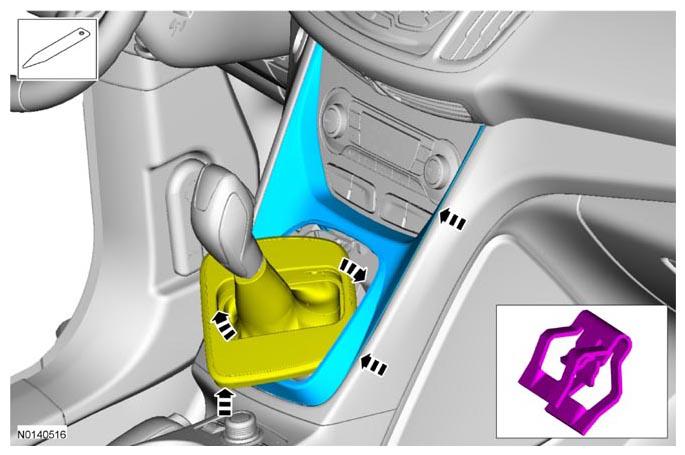

  1. Remove the selector lever trim panel.
    G08617504

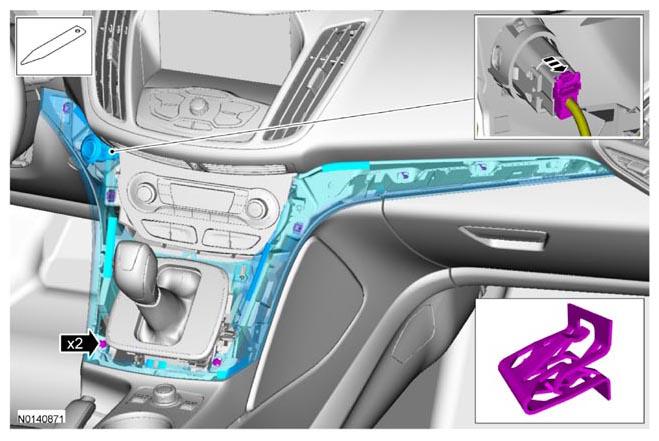

  2. Remove the two screws and the lower instrument panel trim panel.
    • Disconnect the electrical connector.
    • To install, tighten to 3.5 Nm (31 lb-in).
      G08617505
  3. To install, reverse the removal procedure.
