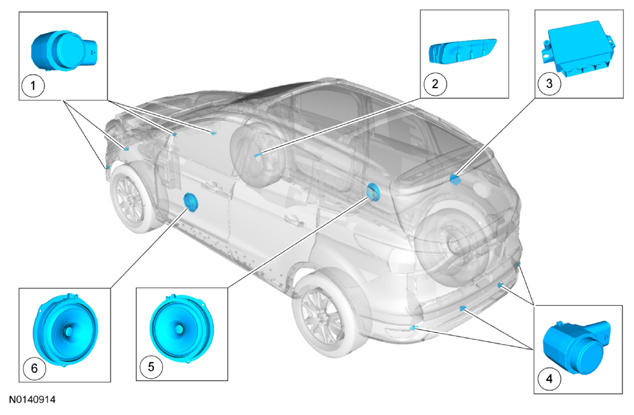

Component Location

G08620247

Item	Description	Comments
1	Front parking aid sensor	-
2	Parking system switch	-
3	PAM	-
4	Rear parking aid sensor	-
5	Rear door speakers	Part of audio system
6	Front door speakers	Part of audio system
