Cylinder Head - LH

WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATIONS

Item Specification
Motorcraft® Metal Surface Prep
ZC-31-A		 -
Motorcraft® Silicone Gasket Remover
ZC-30		 -
Penetrating and Lock Lubricant (US); Penetrating Fluid (Canada)
XL-1 (US); CXC-51-A (Canada)		 -
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. Remove the LH camshafts. For additional information, refer to CAMSHAFT .
  2. If equipped, remove the heat shield and disconnect the block heater electrical connector.
    • Remove the block heater wiring harness from the engine.
      Fig 1: Locating Heat Shield
      G08976482Courtesy of FORD MOTOR CO.

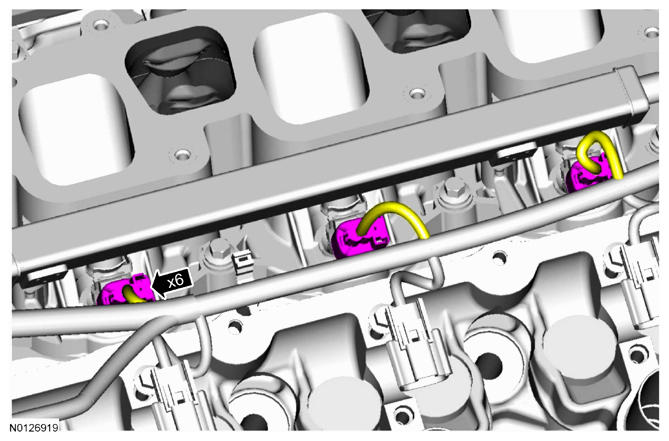

  3. Disconnect the 6 fuel injector electrical connectors (3 shown).
    G08976483

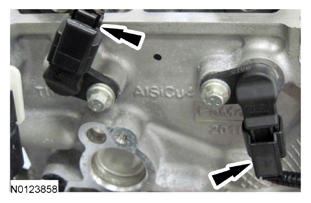

  4. Disconnect the 2 LH Camshaft Position (CMP) sensor electrical connectors.
    G08976484

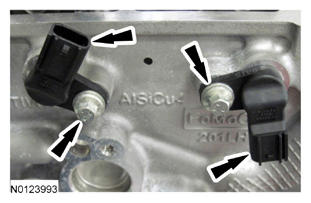

  5. Remove the 2 bolts and the 2 LH CMP sensors.
    G08976485

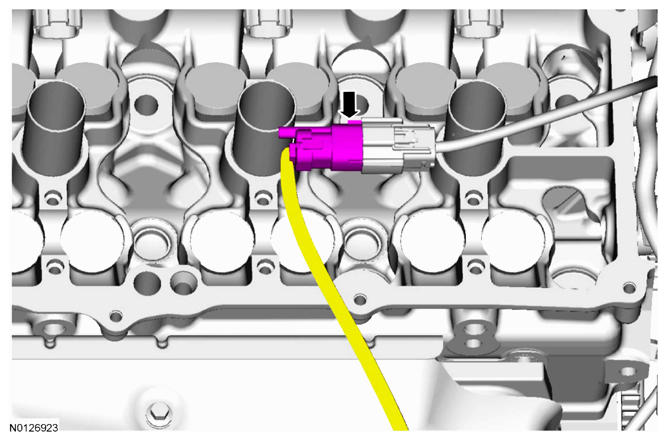

  6. Disconnect the LH Heated Oxygen Sensor (HO2S) electrical connector.
    G08976486

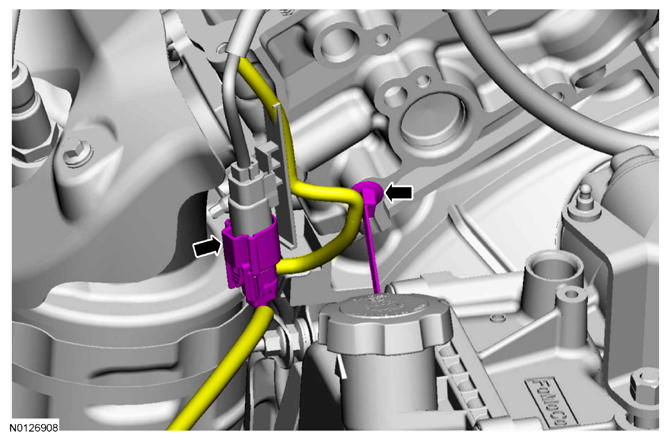

  7. Disconnect the LH Catalyst Monitor Sensor (CMS) electrical connector.
    • Remove the wiring harness retainer from the rear of the LH cylinder head.
      G08976487

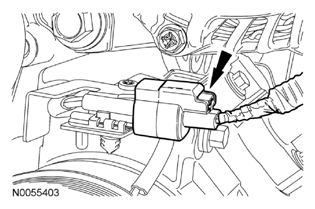

  8. Disconnect the A/C compressor electrical connector.
    Fig 2: Locating A/C Compressor Electrical Connector
    G08976488Courtesy of FORD MOTOR CO.
  9. Remove the nut and disconnect the generator B+ cable.
    Fig 3: Locating Nut And Generator B+ Cable
    G08976489Courtesy of FORD MOTOR CO.
  10. Disconnect the generator electrical connector.
    Fig 4: Locating Generator Electrical Connector
    G08976490Courtesy of FORD MOTOR CO.

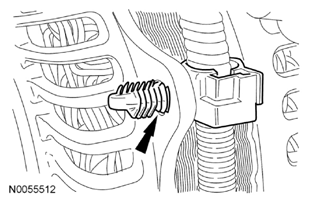

  11. Detach the wiring harness retainer from the generator.
    Fig 5: Locating Wiring Harness Retainer
    G08976491Courtesy of FORD MOTOR CO.
  12. Disconnect the Engine Oil Pressure (EOP) switch electrical connector and the wiring harness pin-type retainer.
    Fig 6: Locating EOP Switch Electrical Connector And Wiring Harness Pin-Type Retainer
    G08976492Courtesy of FORD MOTOR CO.

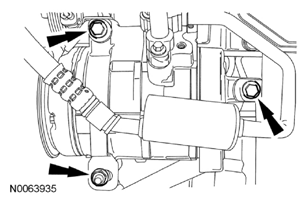

  13. Remove the nut, 2 bolts and the A/C compressor.
    Fig 7: Locating A/C Compressor Bolts
    G08976493Courtesy of FORD MOTOR CO.

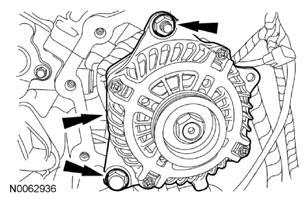

  14. Remove the nut, bolt and the generator.
    Fig 8: Locating Generator Bolts
    G08976494Courtesy of FORD MOTOR CO.

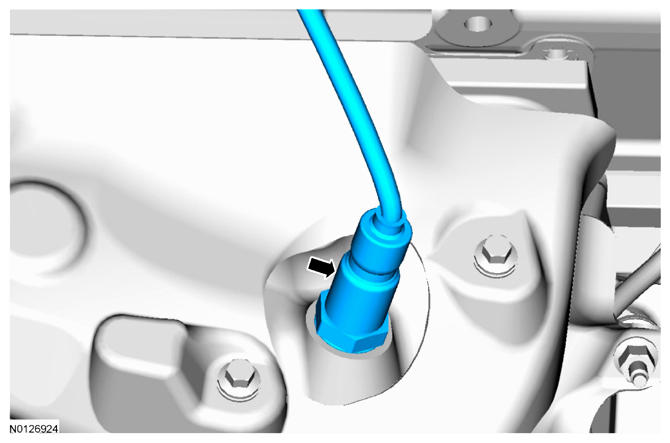

  15. NOTE: If necessary, lubricate the Heated Oxygen Sensor (HO2S) with penetrating and lock lubricant to assist in removal.

    Remove the LH Heated Oxygen Sensor (HO2S).

    G08976495

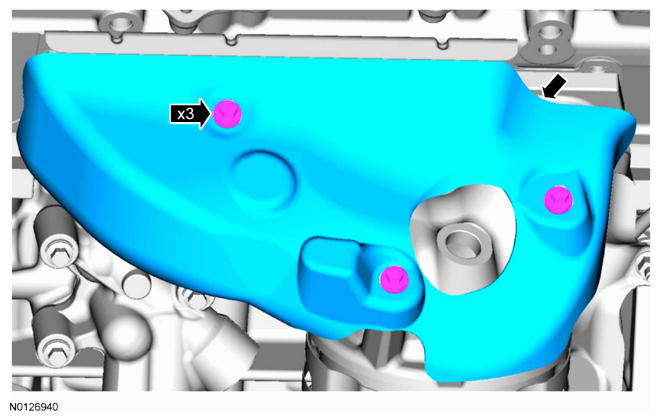

  16. Remove the 3 bolts and the LH exhaust heat shield.
    G08976496

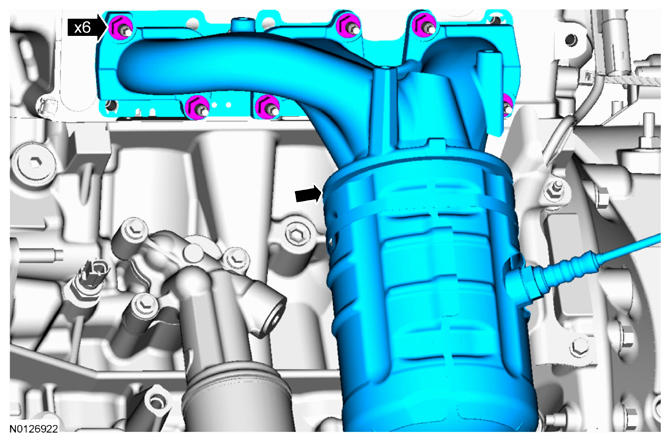

  17. Remove the 6 nuts and the LH catalytic converter.
    • Discard the nuts and the gasket.
      G08976497
  18. Clean and inspect the catalytic converter flange. For additional information, refer to EXHAUST MANIFOLD CLEANING AND INSPECTION .

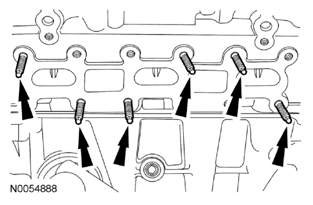

  19. Remove and discard the 6 LH exhaust manifold studs.
    Fig 9: Locating LH Exhaust Manifold Studs
    G08976498Courtesy of FORD MOTOR CO.

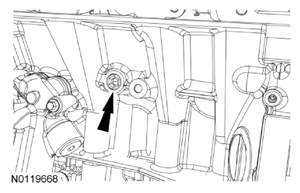

  20. Remove the LH cylinder block drain plug.
    • Allow coolant to drain from the cylinder block.
      Fig 10: Locating LH Cylinder Block Drain Plug
      G08976499Courtesy of FORD MOTOR CO.
  21. Remove the 4 nuts and the RH catalytic converter.
    • Discard the nuts and the gasket.
      Fig 11: Locating RH Catalytic Converter And Nut
      G08976500Courtesy of FORD MOTOR CO.

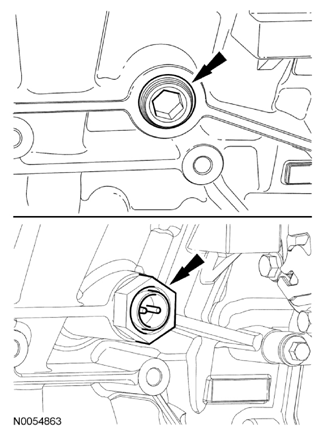

  22. Remove the RH cylinder block drain plug or, if equipped, the block heater.
    • Allow coolant to drain from the cylinder block.
      Fig 12: Locating RH Cylinder Block Drain Plug
      G08976501Courtesy of FORD MOTOR CO.
  23. Disconnect the fuel supply tube-to-fuel rail quick connect coupling. For additional information, refer to the QUICK CONNECT COUPLING procedure.

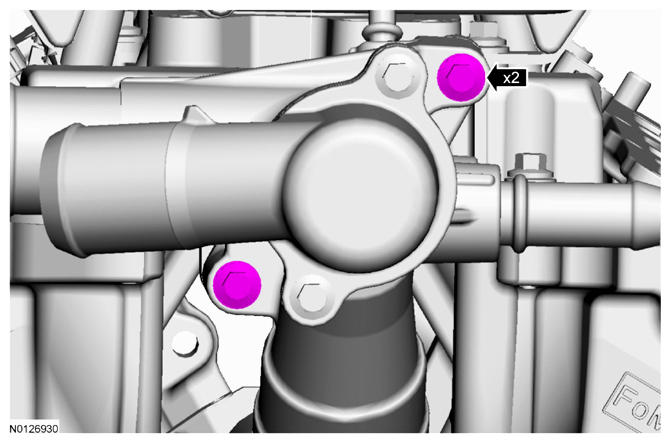

  24. Remove the 2 thermostat housing-to-lower intake manifold bolts.
    G08976502
  25. NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

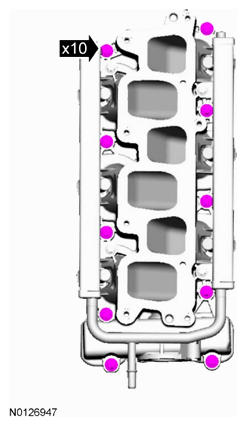

    Remove the 10 bolts and the lower intake manifold.

    • Remove and discard the intake manifold and thermostat housing gaskets.
    • Clean and inspect all sealing surfaces.
      G08976503

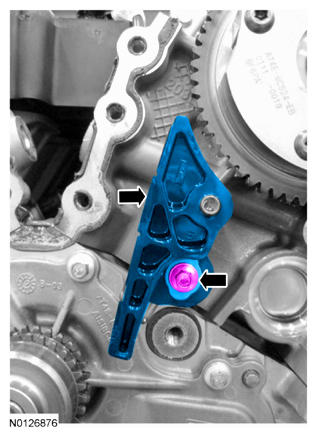

  26. NOTE: Do not use power tools to remove the bolt or damage to the upper LH primary timing chain guide may occur.

    Remove the bolt and the upper LH primary timing chain guide.

    G08976504
  27. NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.

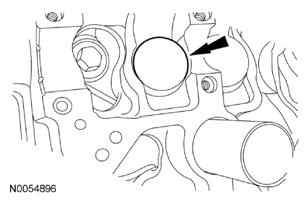

    Remove the valve tappets from the cylinder head.

    Fig 13: Locating Cylinder Head Valve Tappets
    G08976505Courtesy of FORD MOTOR CO.
  28. Inspect the valve tappets. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION .

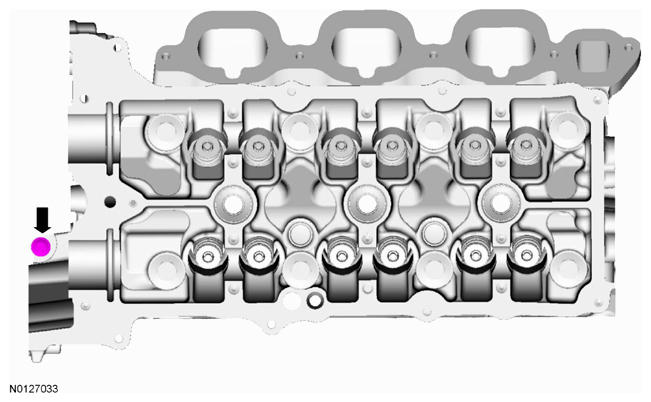

  29. Remove and discard the M6 bolt.
    G08976506
  30. NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
    NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface.
    NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield designed and cannot be reused.

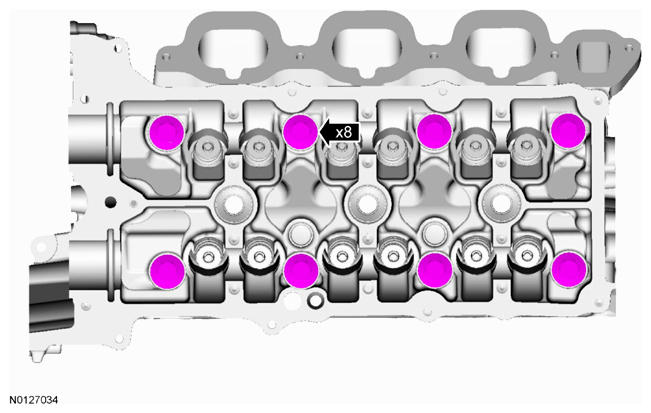

    Remove and discard the 8 bolts from the cylinder head.

    • Remove the cylinder head.
    • Discard the cylinder head gasket.
      G08976507
  31. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.
    NOTE: Observe all warnings or cautions and follow all application directions contained on the packaging of the silicone gasket remover and the metal surface prep.
    NOTE: If there is no residual gasket material present, metal surface prep can be used to clean and prepare the surfaces.

    Clean the cylinder head-to-cylinder block mating surfaces of both the cylinder heads and the cylinder block in the following sequence.

    1. Remove any large deposits of silicone or gasket material with a plastic scraper.
    2. Apply silicone gasket remover, following package directions, and allow to set for several minutes.
    3. Remove the silicone gasket remover with a plastic scraper. A second application of silicone gasket remover may be required if residual traces of silicone or gasket material remain.
    4. Apply metal surface prep, following package directions, to remove any remaining traces of oil or coolant and to prepare the surfaces to bond with the new gasket. Do not attempt to make the metal shiny. Some staining of the metal surfaces is normal.
  32. Support the cylinder head on a bench with the head gasket side up. Check the cylinder head distortion and the cylinder block distortion. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION .
