Valve Spring, Retainer and Seal
WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS DESCRIPTION
| Compressor, Valve Spring 303-300 (T87C-6565-A) |
|
| Compressor, Valve Spring 303-350 (T89P-6565-A) |
|
| Compressor, Valve Spring 303-1249 |
|
| Installer, Valve Stem Oil Seal 303-470 (T94P-6510-CH) |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada) |
WSS-M2C945-A |
-
NOTE: Apply the specified lubricant to the specified component.

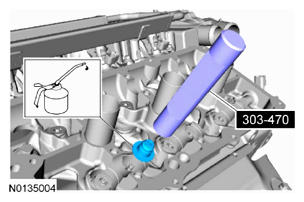

Using the Valve Stem Oil Seal Installer, install a new valve stem seal.

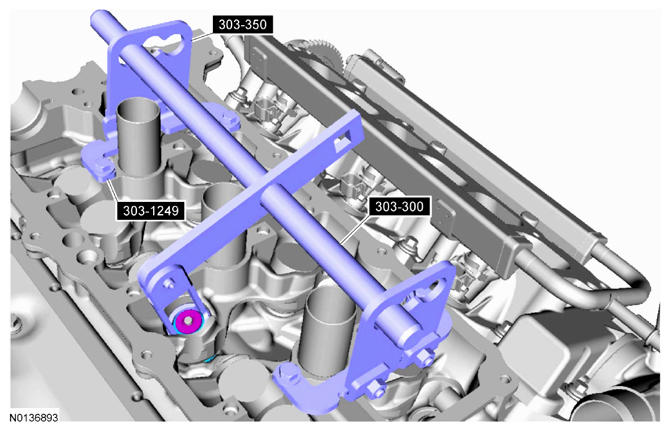

- Using the Valve Spring Compressors, install the valve spring, retainer and key.
- Install the valve tappets. For additional information, refer to VALVE TAPPETS .
