Upper Intake Manifold: Notes

WARNING: This page is about a different variant/trim than selected.

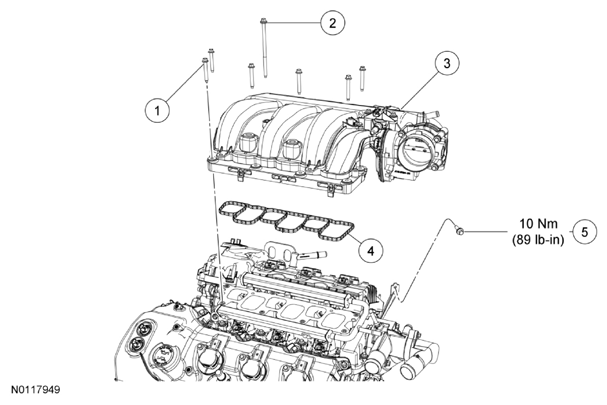

Fig 1: Upper Intake Manifold, Manifold Gasket And Bolt With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9Y450	Upper intake manifold bolt (6 required)
2	W715096	Upper intake manifold bolt
3	9424	Upper intake manifold
4	9H486	Upper intake manifold gasket
5	W503275	Upper intake manifold support bracket bolt
