Oil Pump: Notes
WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS DESCRIPTION
|
|
Tool, Camshaft Holding
303-1248 |

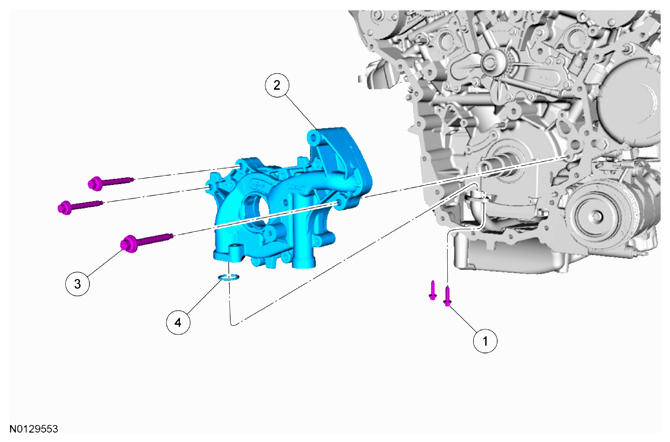

| Item |
Part Number |
Description |
| 1 |
W503278 |
Oil pump screen and pickup tube bolts (2 required) - 10 Nm (89 lb-in) |
| 2 |
6600 |
Oil pump |
| 3 |
W503282 |
Oil pump bolt (3 required) - 10 Nm (89 lb-in) |
| 4 |
6625 |
O-ring seal |
