Oil Pan: Installation

WARNING: This page is about a different variant/trim than selected.

All vehicles

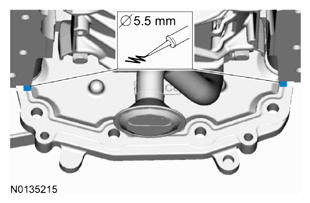

  1. Apply a 5.5 mm (0.21 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 engine front cover-to-cylinder block joint areas on the sealing surface of the oil pan.
    G08976181
  2. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: The oil pan and the 4 specified bolts must be installed and the oil pan aligned to the cylinder block within 4 minutes of sealant application. Final tightening of the oil pan bolts must be carried out within 60 minutes of sealant application.

    Apply a 3 mm (0.11 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the oil pan-to-engine block and to the oil pan-to-engine front cover mating surface.

    G08976182
  3. Apply a 5.5 mm (0.21 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 crankshaft seal retainer plate-to-cylinder block joint areas on the sealing surface of the oil pan.
    G08976183

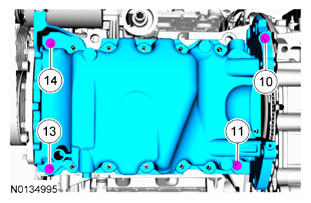

  4. NOTE: The oil pan and the 4 specified bolts must be installed within 4 minutes of the start of sealant application.
    NOTE: Keep the oil pan as close as possible to the transmission while installing, then slide forward towards the engine front cover to prevent wiping off of the sealant.

    Install the oil pan and bolts 10, 11, 13 and 14 finger tight.

    G08976184

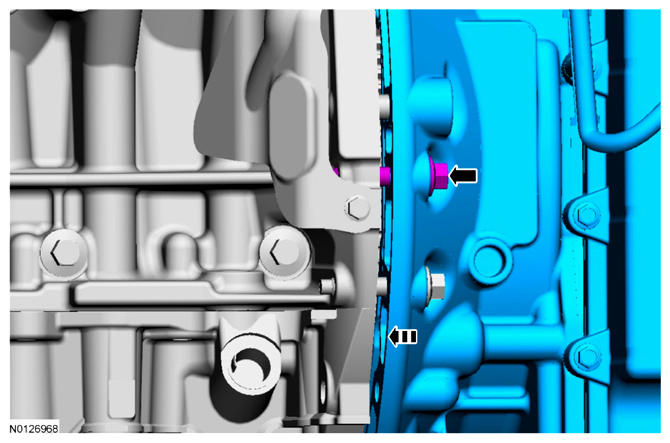

  5. Draw the bellhousing up to the engine by tightening the LH bellhousing-to-engine bolt.
    • Do not torque at this time.
      G08976185

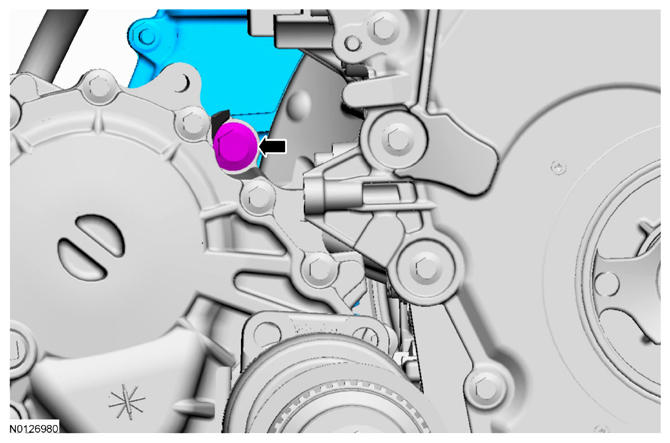

  6. NOTE: AWD vehicle shown, FWD similar. Parts removed from graphic for clarity.

    Draw the bellhousing up to the engine by tightening the RH engine-to-bellhousing bolt.

    • Do not torque at this time.
      G08976186
  7. Install the 4 oil pan-to-bellhousing bolts.
    • Do not torque at this time.
      G08976187

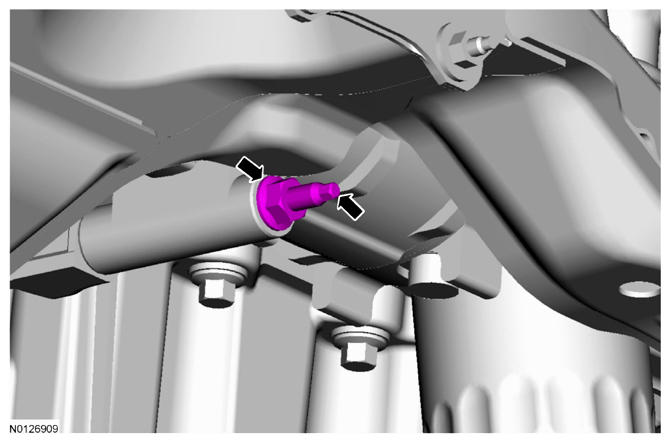

  8. NOTE: It may be necessary to roll the bottom of the engine back for the A/C compressor stud to clear the subframe.

    Install the A/C compressor nut and stud.

    • Tighten the stud to 9 Nm (80 lb-in).
    • Hand tighten the nut.
      G08976188

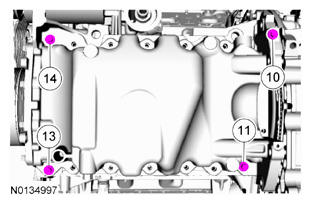

  9. Tighten bolts 10, 11, 13 and 14 in the sequence shown below to 3 Nm (27 lb-in).
    G08976189
  10. Install the 4 lower engine front cover bolts.
    • Do not torque at this time.
      G08976190

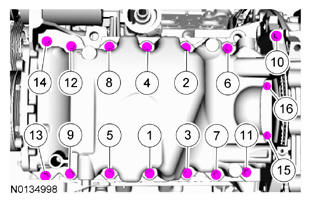

  11. Install the remaining oil pan bolts and tighten in the sequence shown below.
    • Tighten bolts 1 through 9 and 11 through 14 to 20 Nm (177 lb-in), then rotate an additional 45 degrees.
    • Tighten bolts 15 and 16 to 10 Nm (89 lb-in), then rotate an additional 45 degrees.
    • Tighten bolt 10 to 20 Nm (177 lb-in), then rotate an additional 90 degrees.
      G08976191

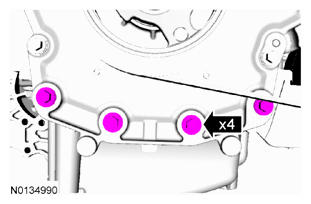

  12. Tighten the 4 lower engine front cover bolts to 24 Nm (18 lb-ft).
    G08976192

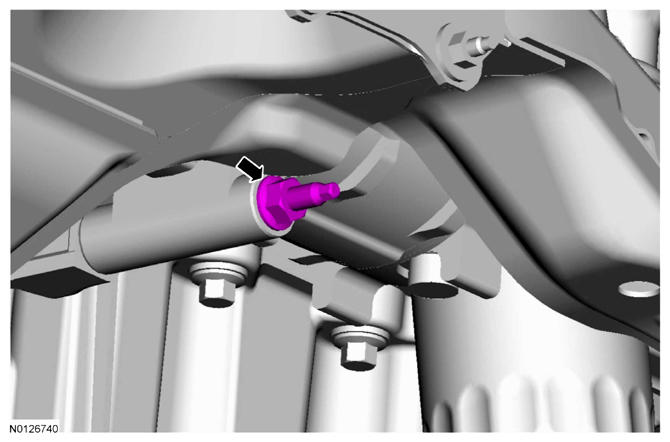

  13. Tighten the A/C compressor nut to 25 Nm (18 lb-ft).
    G08976193

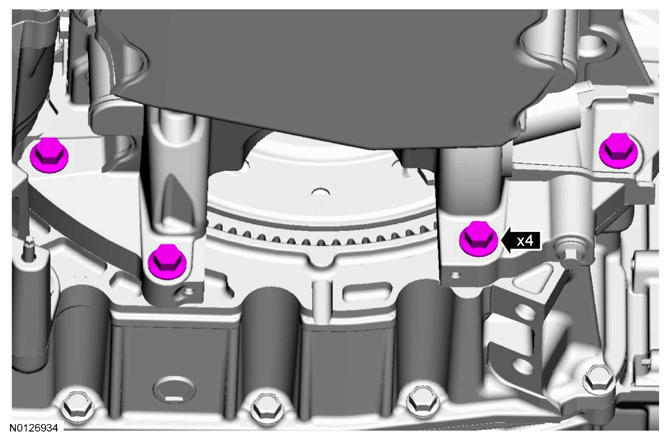

  14. Tighten the 4 oil pan-to-bellhousing bolts to 48 Nm (35 lb-ft).
    G08976194

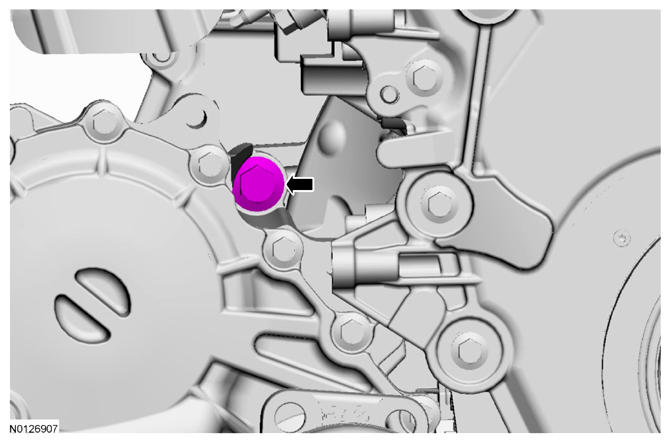

  15. NOTE: AWD vehicle shown, FWD similar. Parts removed from graphic for clarity.

    Tighten the RH engine-to-bellhousing bolt to 48 Nm (35 lb-ft).

    G08976195

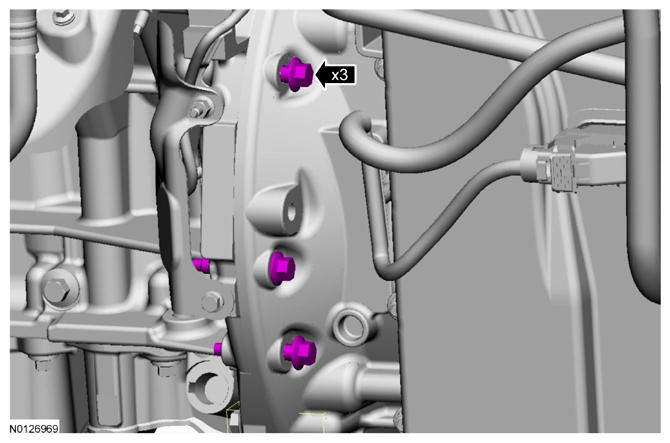

  16. Tighten the 3 LH bellhousing-to-engine bolts to 48 Nm (35 lb-ft).
    G08976196

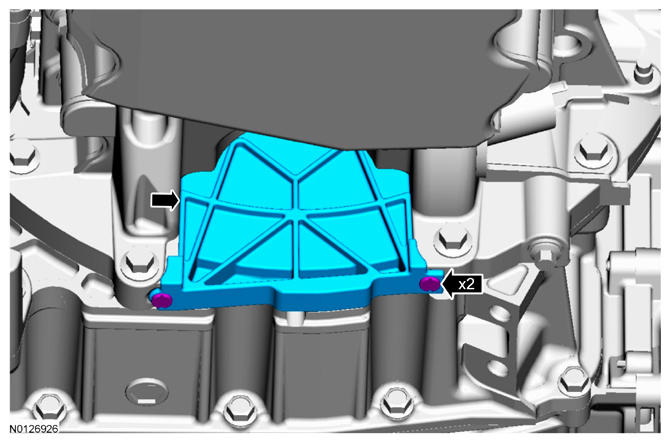

  17. Install the inspection cover and the 2 fasteners.
    G08976197

    AWD vehicles

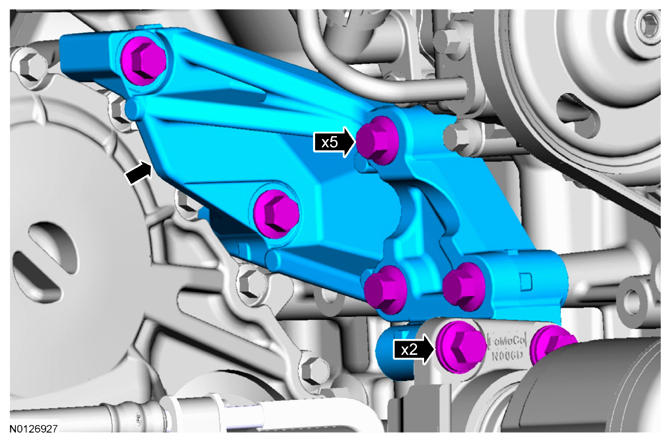

  18. Install the PTU support bracket, the 5 PTU support bracket bolts the 2 intermediate shaft support bolts.
    • Tighten the PTU support bracket bolts to 70 Nm (52 lb-ft).
    • Tighten the 2 intermediate shaft support bolts to 40 Nm (30 lb-ft).
      G08976198
  19. Install the RH catalytic converter. For additional information, refer to EXHAUST SYSTEM .
  20. Install the RH wheel and tire. For additional information, refer to WHEELS & TIRES .

    All vehicles

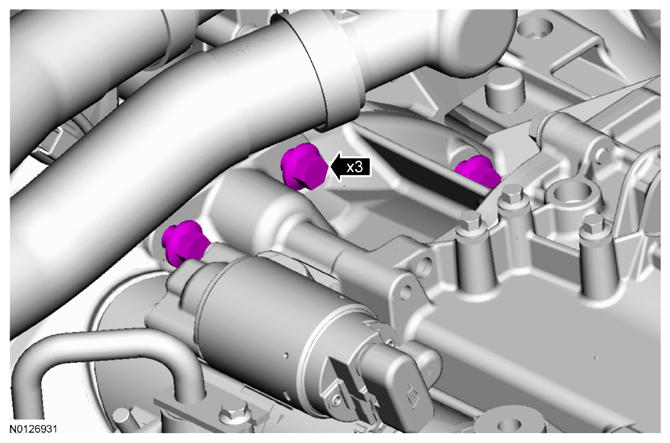

  21. Tighten the 3 upper bellhousing-to-engine bolts to 48 Nm (35 lb-ft).
    G08976199

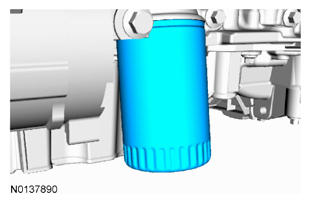

  22. NOTE: Do not lubricate the engine oil filter gasket.

    Install a new engine oil filter.

    • Tighten to 5 Nm (44 lb-in) and then rotate an additional 180 degrees.
      G08976200
  23. Install the engine roll restrictor. For additional information refer to, AUTOMATIC TRANSMISSION - 6F50/6F55 .

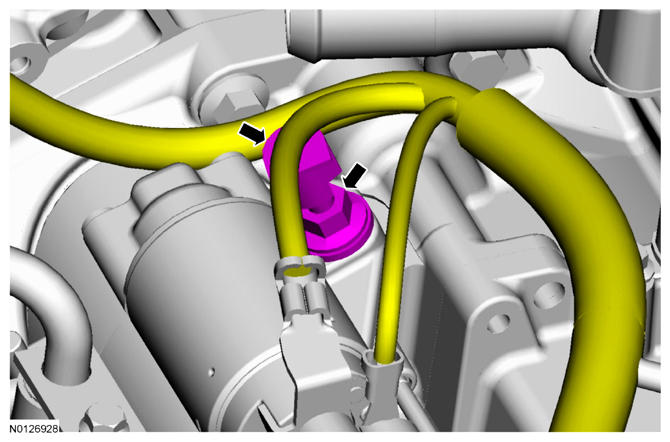

  24. Install the starter stud bolt.
    • Tighten to 27 Nm (20 lb-in).
    • Attach the wiring harness retainer to the starter stud bolt.
      G08976201

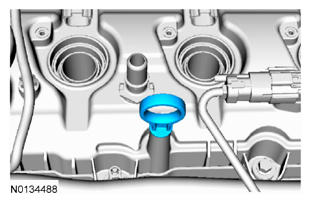

  25. Install the oil level indicator.
    G08976202
  26. Install the battery tray. For additional information, refer to BATTERY, BATTERY MOUNTING & BATTERY CABLES .
  27. Install the ACL assembly. For additional information, refer to INTAKE AIR DISTRIBUTION SYSTEM & INTAKE AIR FILTERING SYSTEM .
  28. Fill the engine with clean engine oil.
