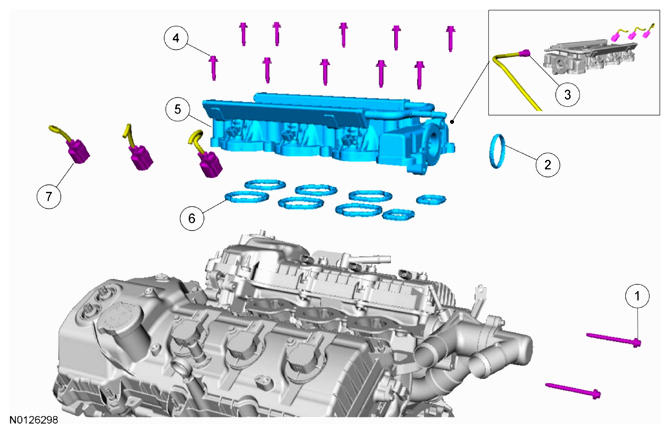

Lower Intake Manifold: Notes
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | W713197 | Thermostat housing-to-lower intake manifold bolt (2 required) - 10 Nm (89 lb-in) |
| 2 | 8A571 | Thermostat housing gasket |
| 3 | 9J280 | Fuel supply tube |
| 4 | W503279 | Lower intake manifold bolt (10 required) |
| 5 | 9424 | Lower intake manifold |
| 6 | 9439 | Lower intake manifold gasket (8 required) |
| 7 | - | Fuel injector electrical connector (part of 12A581) (6 required) |
