Exhaust Manifold - RH: Notes
WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Metal Surface Prep ZC-31-A |
- |

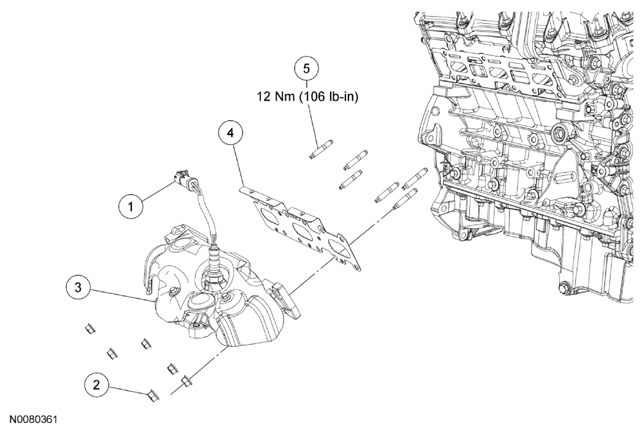

| Item | Part Number | Description |
|---|---|---|
| 1 | - | RH Heated Oxygen Sensor (HO2S) electrical connector (part of 12C508) |
| 2 | W701706 | RH exhaust manifold nut (6 required) |
| 3 | 9430 | RH exhaust manifold |
| 4 | 9448 | RH exhaust manifold gasket |
| 5 | W712244 | RH exhaust manifold stud (6 required) |
