Engine Oil Pressure (EOP) Switch: Notes
WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATIONS
| Item |
Specification |
Thread Sealant with PTFE
TA-24 |
WSK-M2G350-A2 |
Courtesy of FORD MOTOR CO.

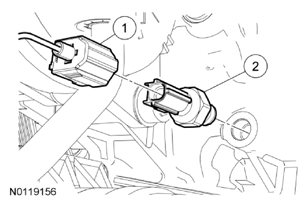

| Item |
Part Number |
Description |
| 1 |
- |
Engine Oil Pressure (EOP) switch electrical connector (part of 12A581) |
| 2 |
9278 |
EOP switch - 14 Nm (124 lb-in) plus an additional 180 degrees |
