Engine Mount: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the engine appearance cover. For additional information, refer to ENGINE APPEARANCE COVER - EXPLODED VIEW .
NOTE: Failure to position the wood block and floor jack as illustrated can result in damage to the oil pan.

Position a floor jack with a block of wood under the front of the oil pan.

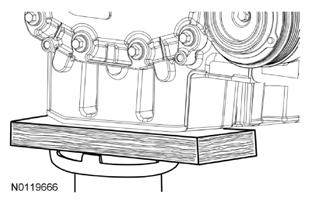

Fig 1: Supporting Front Oil Pan
Courtesy of FORD MOTOR CO.
Remove the 3 bolts and position the engine coolant degas bottle aside.

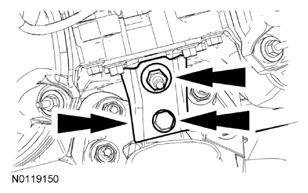

Remove the nut, bolt and engine mount brace.

Fig 2: Locating Engine Mount Brace Nut And Bolt
Courtesy of FORD MOTOR CO.

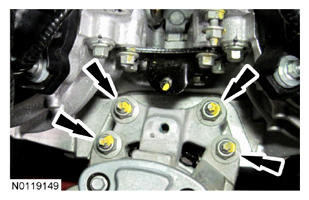

Remove the 4 engine mount nuts.

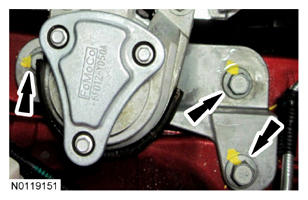

Remove the 3 bolts and the engine mount.
