Engine Mount: Installation

WARNING: This page is about a different variant/trim than selected.

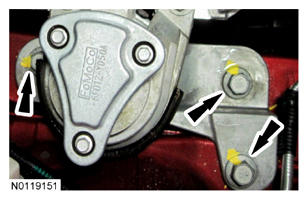

  1. Install the engine mount and the 3 bolts.
    • Tighten to 90 Nm (66 lb-ft).
      G08976151

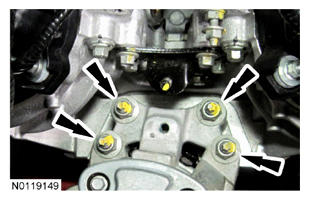

  2. Install the 4 engine mount nuts.
    • Tighten to 63 Nm (46 lb-ft).
      G08976152

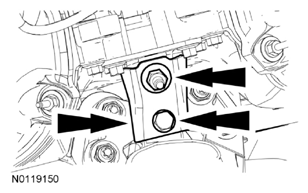

  3. Install the engine mount brace, nut and bolt.
    • Tighten to 20 Nm (177 lb-in).
      Fig 1: Locating Engine Mount Brace Nut And Bolt
      G08976153Courtesy of FORD MOTOR CO.
  4. Position the engine coolant degas bottle and install the 3 bolts.
    • Tighten to 9 Nm (80 lb-in).
  5. Install the engine appearance cover. For additional information, refer to ENGINE APPEARANCE COVER - EXPLODED VIEW .
