Engine Front Cover: Notes
WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS DESCRIPTION
| 3 Jaw Puller 303-D121 or equivalent |
|
| Alignment Pins 307-399 |
|
| Installer, Front Cover Oil Seal 303-335 (T88T-6701-A) |
|
| Installer, Front Crankshaft Seal 303-1251 |
|
| Remover, Oil Seal 303-409 (T92C-6700CH) |
|
| Replacer, Crankshaft Vibration Damper 303-102 (T74P-6312-B) |
|
| Strap Wrench 303-D055 (D85L-6000-A) or equivalent |
|
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® High Performance Engine RTV Silicone TA-357 |
WSE-M4G323-A6 |
| Motorcraft® Metal Surface Prep ZC-31-A |
- |
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada) |
WSS-M2C945-A |
| Motorcraft® Silicone Gasket Remover ZC-30 |
- |

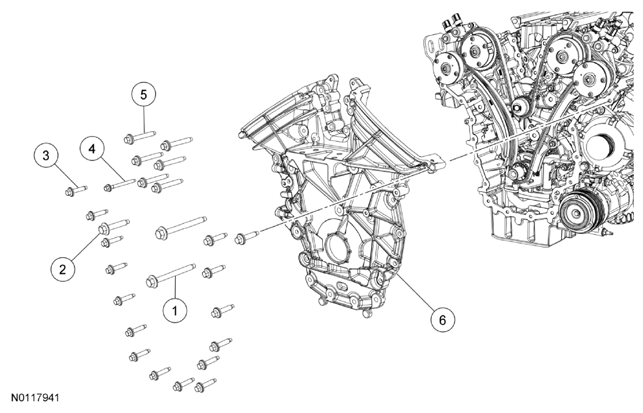

| Item | Part Number | Description |
|---|---|---|
| 1 | W714821 | Engine front cover bolt (2 required) |
| 2 | W714822 | Engine front cover bolt |
| 3 | W503297 | Engine front cover bolt (16 required) |
| 4 | W503285 | Engine front cover bolt |
| 5 | W503301 | Engine front cover bolt (6 required) |
| 6 | 6019 | Engine front cover |
