Crankshaft Rear Seal: Installation

WARNING: This page is about a different variant/trim than selected.

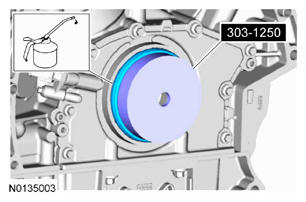

  1. NOTE: Lubricate the seal lips and bore with clean engine oil prior to installation.

    Position the Rear Main Seal Installer onto the end of the crankshaft and slide a new crankshaft rear seal onto the tool.

    G08976051

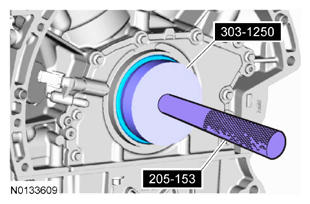

  2. Using the Rear Main Seal Installer and Handle, install the new crankshaft rear seal.
    G08976052

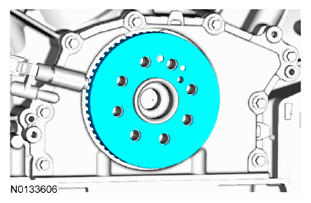

  3. Install the crankshaft sensor ring.
    G08976053
  4. Install the flexplate. For additional information, refer to FLEXPLATE .
