Crankshaft Pulley: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the accessory drive belt and the power steering belt. For additional information, refer to ACCESSORY DRIVE BELT .

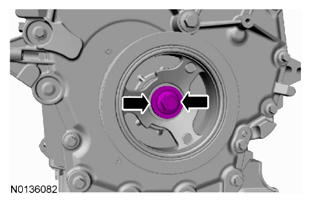

  3. Remove the crankshaft pulley bolt and washer.
    • Discard the bolt.
      G08976040
  4. Using the 3 Jaw Puller, remove the crankshaft pulley.
    G08976041
