Crankshaft Front Seal: Installation

WARNING: This page is about a different variant/trim than selected.
  1. NOTE: Apply clean engine oil to the crankshaft front seal bore in the engine front cover.

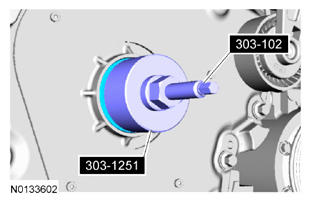

    Using the Front Crankshaft Seal Installer and Crankshaft Vibration Damper Installer, install a new crankshaft front seal.

    G08976034
  2. Install the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY .
