Cylinder Head: Assembly

WARNING: This page is about a different variant/trim than selected.

All cylinder heads

Install the valve.
NOTE: Lubricate the valve stem seal with clean engine oil prior to installation.

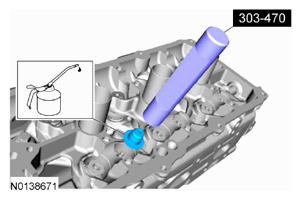

Using the Valve Stem Oil Seal Installer, install a new valve stem seal.

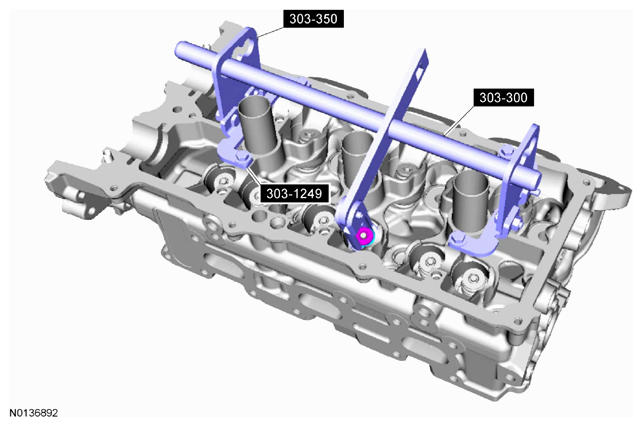

Using the Valve Spring Compressors, install the valve spring, retainer and key.
Repeat the above steps for each valve.

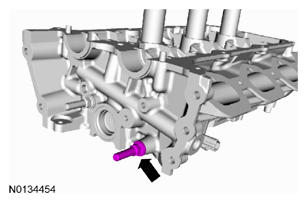

Install the timing chain guide pin.
- Tighten to 10 Nm (89 lb-in).

  RH cylinder head

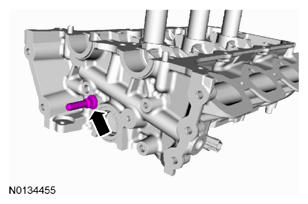

Install the timing chain tensioner arm pin.
- Tighten to 10 Nm (89 lb-in).

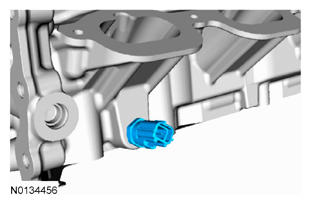

Install a new CHT sensor.
- Tighten to 10 Nm (89 lb-in).
