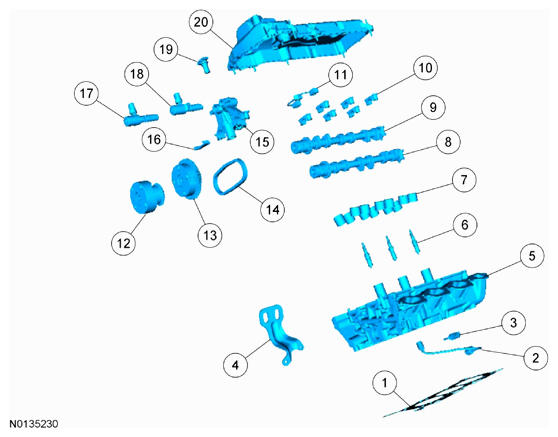

Engine Upper - RH Cylinder Head
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6051 | RH cylinder head gasket |
| 2 | 14B485 | CHT sensor jumper harness |
| 3 | 6G004 | CHT sensor |
| 4 | 17A084 | Engine lift eye |
| 5 | 6049 | RH cylinder head |
| 6 | 12405 | Spark plug (3 required) |
| 7 | 6500 | Valve tappet (12 required) |
| 8 | 6A266 | RH intake camshaft |
| 9 | 6A268 | RH exhaust camshaft |
| 10 | 6A258 | RH camshaft cap (8 required) |
| 11 | 6K602 | Valve train oil feed tube |
| 12 | 6C525 | Exhaust camshaft VCT assembly |
| 13 | 6C524 | Intake camshaft VCT assembly |
| 14 | 6C256 | RH secondary timing chain |
| 15 | 6B280 | Camshaft mega cap |
| 16 | 6K297 | RH secondary tensioner shoe |
| 17 | 6B297 | Exhaust camshaft VCT oil control solenoid |
| 18 | 6B297 | Intake camshaft VCT oil control solenoid |
| 19 | 6C270 | RH secondary timing chain tensioner |
| 20 | 6K271 | RH valve cover |
